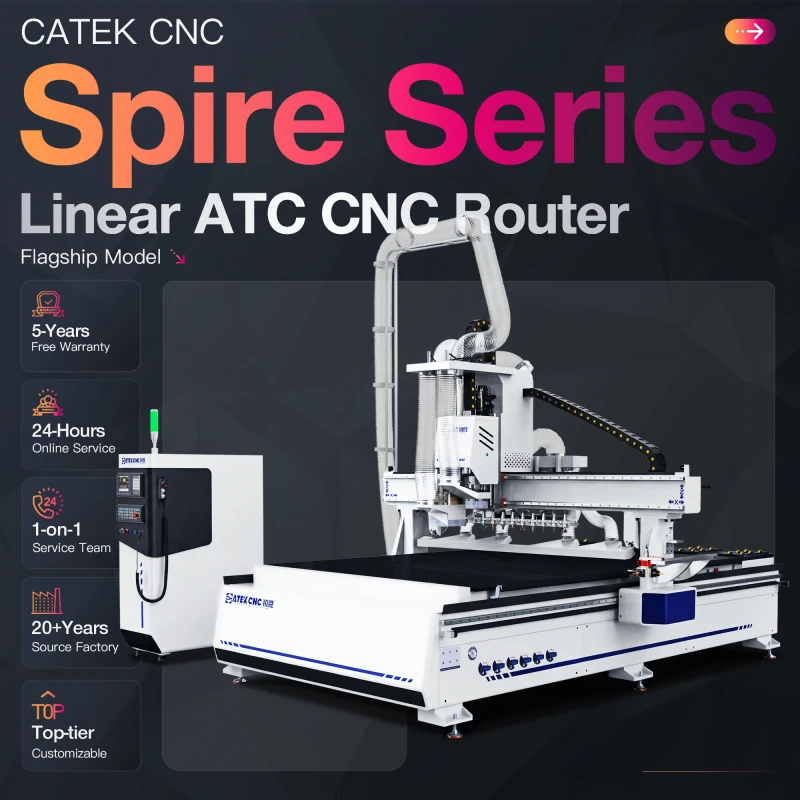

2130 CNC Router Drilling Unit Angle Head ATC for Cabinet Side Hole Processing
2130 CNC Router Drilling Unit Angle Head ATC for Cabinet Side Hole Processing
| number of axes | 3 | voltage | 380 V, 110 V, 200 V |
| machine type | Nesting CNC Router | No. of Spindles | ATC |
| key selling points | Multifunctional | Accessory Type | Dust collection |
| core components | Motor, PLC, Engine, Pump, Bearing | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2800 | range of spindle speed(r.p.m) | 0 - 24000 |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 2100 |
| travel (y axis)(mm) | 3000 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 9 | dimension(l*w*h) | 4160*3050*2250 |
| Product name | ATC CNC Router Machine for Wood | Gantry | Reinforced aged steel gantry, heavy-duty stress-relieved steel beam |
| Spindle Mounting Plate | 70mm thick hard-anodized aluminum mounting plate | Spindle | Italy HSD 9KW high-speed variable frequency air-cooled ATC spindle |
| Spindle Speed | Max speed 24000RPM | Drilling Unit | HQD 5+4 Vertical Drilling Bank |
| Drilling Speed | 3200RPM | Angle Head | 4-sided aggregate |
| Variable Frequency Drive | Taiwan Delta MS300 11KW VFD | Tool Magazine | 12-tool linear tool magazine |
