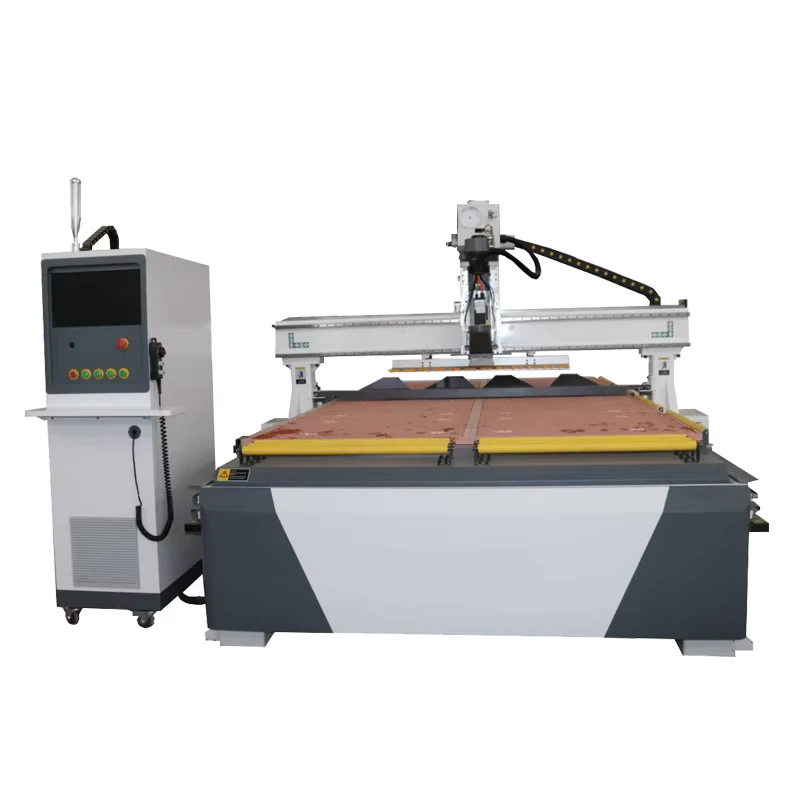

2000*4000mm Automatic 3 Axis 3D CNC Wood Engraving Machine ATC CNC Router with 8 or 12 Tools for Furniture Cutting CNC

2000*4000mm Automatic 3 Axis 3D CNC Wood Engraving Machine ATC CNC Router with 8 or 12 Tools for Furniture Cutting CNC
  • 2000*4000mm Automatic 3 Axis 3D CNC Wood Engraving Machine ATC CNC Router with 8 or 12 Tools for Furniture Cutting CNC

    • 2000*4000mm Automatic 3 Axis 3D CNC Wood Engraving Machine ATC CNC Router with 8 or 12 Tools for Furniture Cutting CNC

    Request a Quote
    Working Table Size(mm)2000×4000number of axes3
    voltage220V/380Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsCompetitive Price
    core componentsspindlecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)2000range of spindle speed(r.p.m)1 - 24000 rpm
    positioning accuracy (mm)0.05 mm(0in)travel (x axis)(mm)2000 mm(78.74in)
    travel (y axis)(mm)4000 mm(157.48in)repeatability (x/y/z) (mm)0.01 mm(0in)
    Spindle Motor Power (kw)9.0kw(12.07hp)dimension(l*w*h)3600*2200*2000mm(141.73*86.61*78.74in)
    ModelLK-2040 ATC cnc router machineWorking area2000*4000mm
    Machine structureHeavy duty 5 axis machining center bracketWorking tableVacuum table with 7.5kw water cooled vacuum pump
    SpindleChangsheng 9.0kw ATC air cooling spindleTransmissionX,Y axis by helical gear rack (Xinyue brand), Z axis by pneumatic
    Motors and driversLeadshine 2206 AC Hybrid servo motor & driverControl systemSYNTEC FC control system
    Invert11KW Fuling invert
