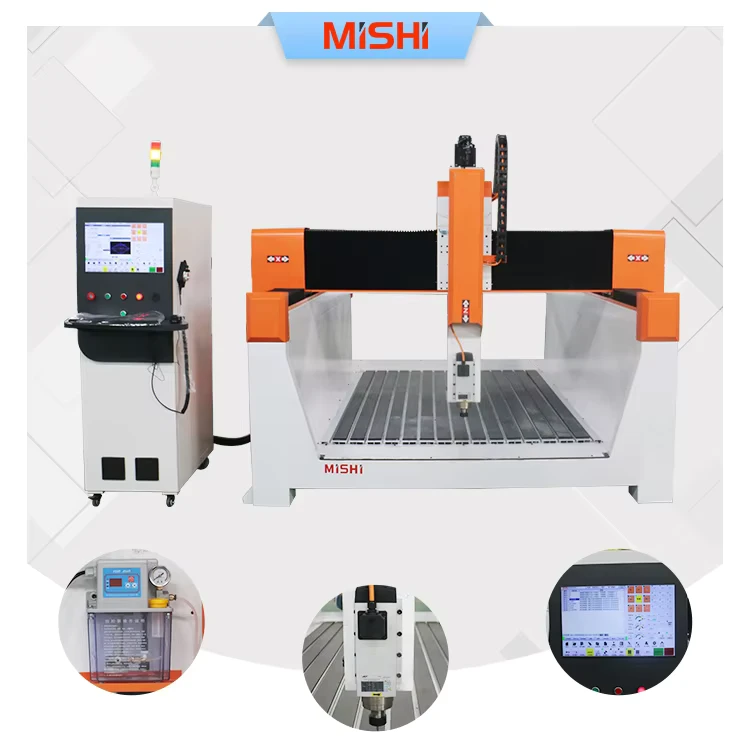

1530 Surfboard Foam CNC Router Machine Styrofoam 3 Axes EPS Wood Cutting Mold Making Router Machine

1530 Surfboard Foam CNC Router Machine Styrofoam 3 Axes EPS Wood Cutting Mold Making Router Machine
  • 1530 Surfboard Foam CNC Router Machine Styrofoam 3 Axes EPS Wood Cutting Mold Making Router Machine

    • 1530 Surfboard Foam CNC Router Machine Styrofoam 3 Axes EPS Wood Cutting Mold Making Router Machine

    Request a Quote
    number of axes3voltage220V/380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh Rigiditycore componentsMotor, Pump, SPINDLE, SYSTEM, Driver
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1200
    range of spindle speed(r.p.m)0 - 18000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)1500travel (y axis)(mm)3000
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)6kw(8.05hp)
    dimension(l*w*h)3250*1700*2250mm(127.95*66.93*88.58in)Product nameFoam Cnc Router Machine
    ApplicationFoam MouldsKeywordsFoam Cnc Router
    FunctionFoam 3d Models MakingTransmissionXY-axis:rack Z-axis:ball Screw
    Table SurfaceT-slot Aluminum +PVCSoftwareUcancam / ArtCam/TYPE3
    Guide railTaiwan Hiwin Square Guide RailMaterialFoam Polystyrene Composite
    Table structureBigger Heavy Duty Welded Frame
