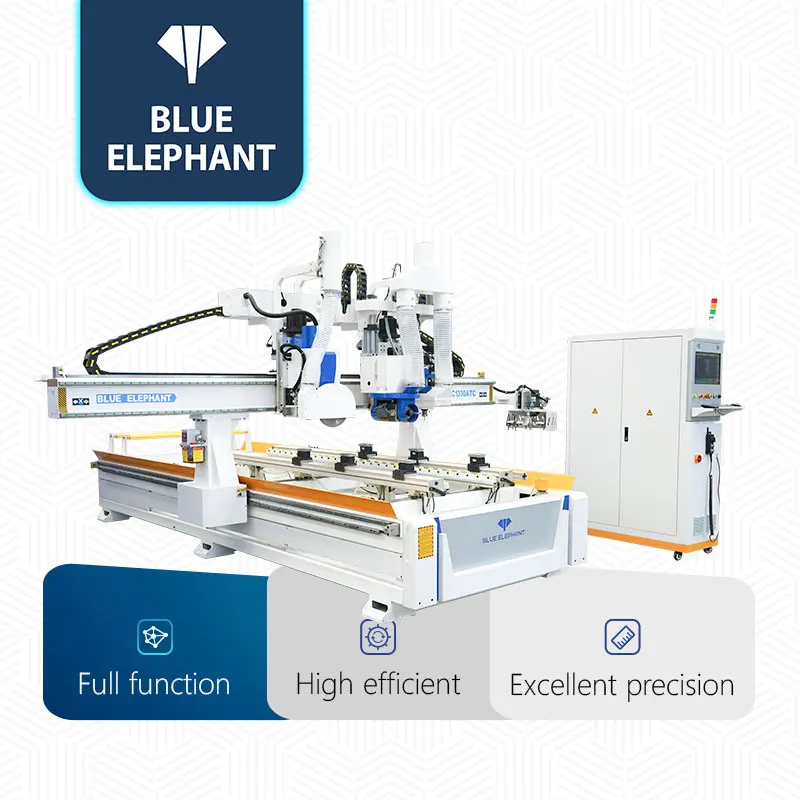

1330 ATC Furniture CNC Machining Center Automatic Wooden Door Making Machine With PTP Adsorption Table

1330 ATC Furniture CNC Machining Center Automatic Wooden Door Making Machine With PTP Adsorption Table
  • 1330 ATC Furniture CNC Machining Center Automatic Wooden Door Making Machine With PTP Adsorption Table

    • 1330 ATC Furniture CNC Machining Center Automatic Wooden Door Making Machine With PTP Adsorption Table

    Request a Quote
    Working Table Size(mm)1300*3000*200mm(51.18*118.11*7.87in)number of axes3
    voltage380 V, 200 Vmachine typeCNC Router
    No. of SpindlesATCkey selling pointsEasy To Operate
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)15.5weight (kg)3000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)3000
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)9
    Showroom LocationChinaProduct nameFurniture CNC Machining Center
    SystemSyntech 8 axis systemATC Spindle9kw air cooling spindle,ISO30
    Horizontal spindle5.5kw double-head horizontal spindle,rotating 90°Saw spindle1.5kw+7.5kw saw blades,rotating 90°
    Motorservo motorReducerJapan SHIMPO reducer
    Tool changer8-tool carousel tool changer magazine
