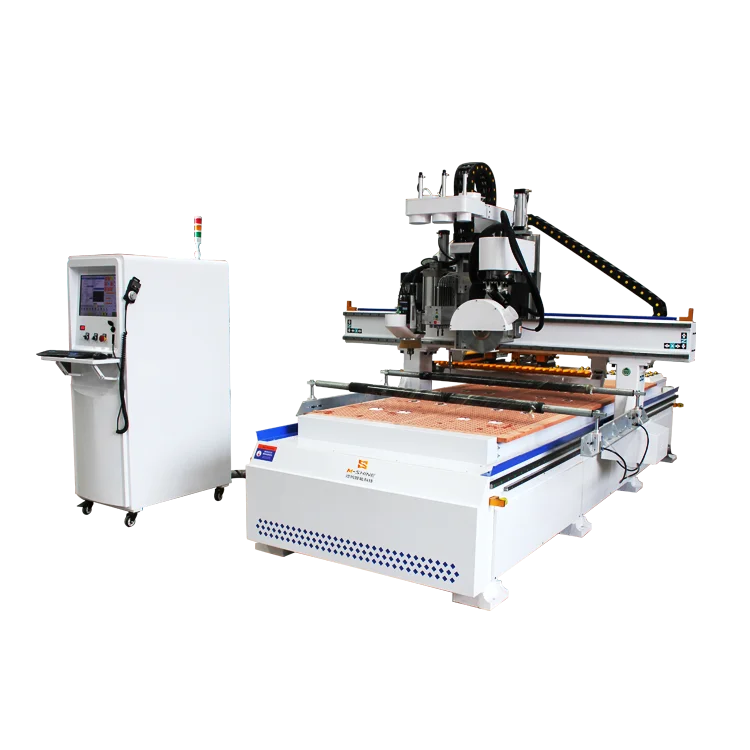

1328 Wood Panel Saw Woodworking Machinery Multi function Cutting CNC Router

1328 Wood Panel Saw Woodworking Machinery Multi function Cutting CNC Router
  • 1328 Wood Panel Saw Woodworking Machinery Multi function Cutting CNC Router

    • 1328 Wood Panel Saw Woodworking Machinery Multi function Cutting CNC Router

    Request a Quote
    number of axes5voltage380V 50HZ 3P/ 220V 50HZ 1P
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalAccessory TypeDust collection, Scanner
    core componentsBearing, Motor, Gearbox, Spindlecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)2600range of spindle speed(r.p.m)0 - 24000 rpm
    positioning accuracy (mm)0.02travel (x axis)(mm)1300
    travel (y axis)(mm)2800repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)9dimension(l*w*h)4000*2300*2400mm(157.48*90.55*94.49in)
    Saw blade parameters7.5KW high-power saw blade capable of 45° cuttingWorking SpindleChina HQD 9KW spindle (speed 0-24000/MIN)
    Drilling deviceChina HQD 4*5 row drill setSpindle hanging plate750MM thickness overall oxidation treatment
    Tool change magazine12 tool change linear magazine (supports 8-16 customization)Servo MotorChina Leadshine 1500W pure servo motor
    Servo DriverChina Leadshine DriverControl SystemTaiwan LNC Control system
    InverterChina Brand7.5KW and 11KW Fuling inverterTrackXYZ Axis 30 Taiwan Hiwin Track
