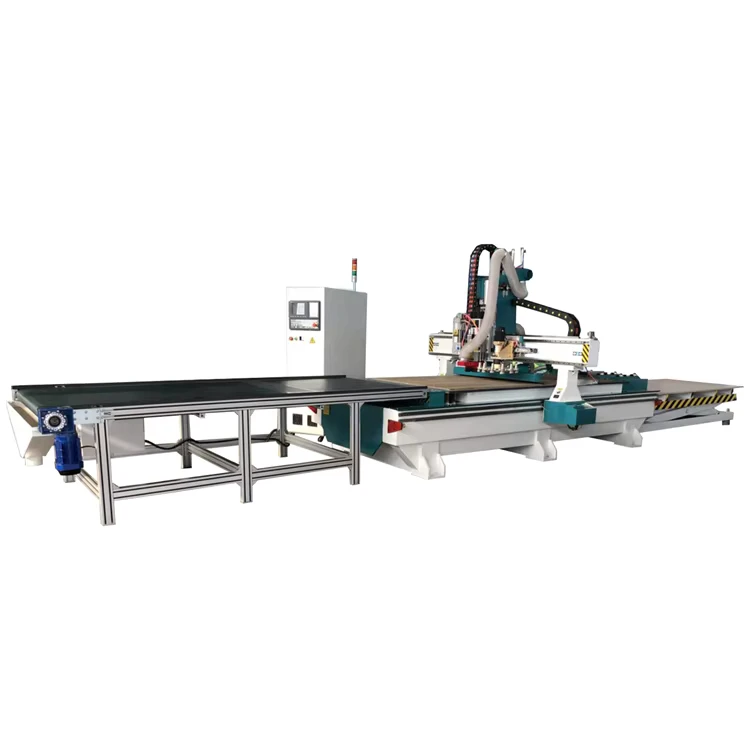

1325 Wooden Cabinet Door ATC Cnc Machining Center Auto Loading Wood Working Nesting Cnc Router

1325 Wooden Cabinet Door ATC Cnc Machining Center Auto Loading Wood Working Nesting Cnc Router
  • 1325 Wooden Cabinet Door ATC Cnc Machining Center Auto Loading Wood Working Nesting Cnc Router

    • 1325 Wooden Cabinet Door ATC Cnc Machining Center Auto Loading Wood Working Nesting Cnc Router

    Request a Quote
    number of axes3voltage380V
    machine typeNesting CNC RouterNo. of SpindlesSingle
    key selling pointsHigh Rigiditycore componentsMotor, Pump
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2500
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)9
    dimension(l*w*h)3700*2250*2280mm(145.67*88.58*89.76in)Product nameCA-1325 ATC CNC Router with loading and unloadng
    ApplicationKitchen Cabinet Doors Furnitures MakingSpindle9kw ATC Air Cooling Spindle
    Table SurfaceVacuum Table+T-solt TableControl systemSYNTEC ATC control system
    TransmissionTaiwan TBI Ball Screw TransmissionSpindle power9.0kw ATC Air Cooling
    Drive SystemServo DriveTool magazineLinear Tool Magazine 12 Tools
    Spindle Speed0-24000rmp
