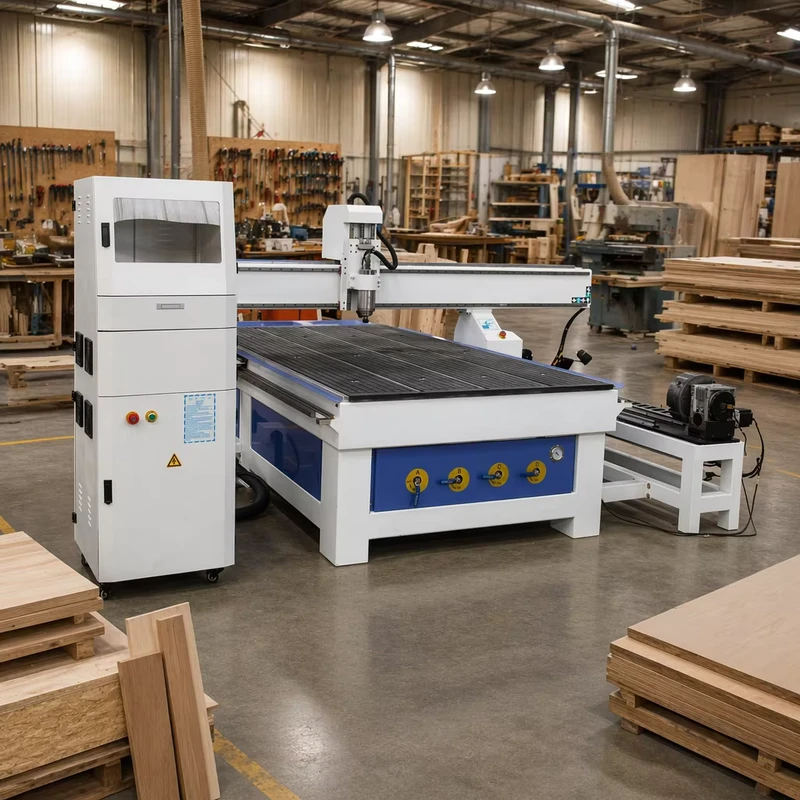

1325 CNC Router 4 Axis CNC Woodworking With Rotary Device For 3D Wood Stone Carving Cylinder Engraving Machine

1325 CNC Router 4 Axis CNC Woodworking With Rotary Device For 3D Wood Stone Carving Cylinder Engraving Machine
  • 1325 CNC Router 4 Axis CNC Woodworking With Rotary Device For 3D Wood Stone Carving Cylinder Engraving Machine

    • 1325 CNC Router 4 Axis CNC Woodworking With Rotary Device For 3D Wood Stone Carving Cylinder Engraving Machine

    Request a Quote
    number of axes4voltage380V 3 phase
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsCompetitive Pricecore componentsMotor
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1500
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)3KW(4.02hp)
    dimension(l*w*h)3800*2200*1850mm(149.61*86.61*72.83in)Product nameSC-1325
    Working tableVacuum Pump AdsorptionSpindle3KW water cooling
    ApplicationFOAM MDF WOOD ACRYLIC ALUMINUMWorking area1300mmX2500mm
    Inverter3.7KW BestMotorLeadshine Motor
    SoftwareArtcam SoftwareTransmissionGear Rack
    Control systemDSP
