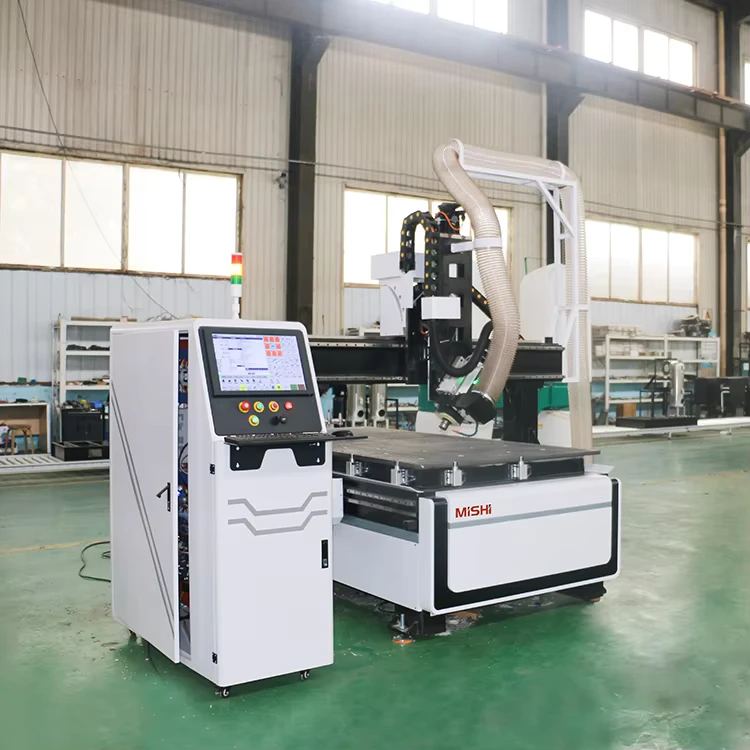

1325 ATC CNC Router with 180 Degree Swing Head for 3D Mold Woodworking 4x8ft Machining Center

1325 ATC CNC Router with 180 Degree Swing Head for 3D Mold Woodworking 4x8ft Machining Center
  • 1325 ATC CNC Router with 180 Degree Swing Head for 3D Mold Woodworking 4x8ft Machining Center

    • 1325 ATC CNC Router with 180 Degree Swing Head for 3D Mold Woodworking 4x8ft Machining Center

    Request a Quote
    number of axes3voltage380V 50HZ 3P/ 220V 50HZ 1P
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh Rigiditycore componentsBearing, Motor, Gearbox, Spindle
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1500
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)3
    dimension(l*w*h)3150*2000*1700mm(124.02*78.74*66.93in)Product nameATC CNC Router Machine
    KeywordsATC Woodworking Cnc RouterApplicationKitchen Cabinet Doors Furnitures Making
    Control systemNc-studio/Mach3/DSP Control SystemAfter-sales Service ProvidedService Machinery Overseas
    Spindle9kw ATC SpindleFunctionWood Acylic Plywood MDF Engraving
    Working area1300x2500mmTransmissionTaiwan TBI Ball Screw
    Name1325 Woodworking CNC Router
