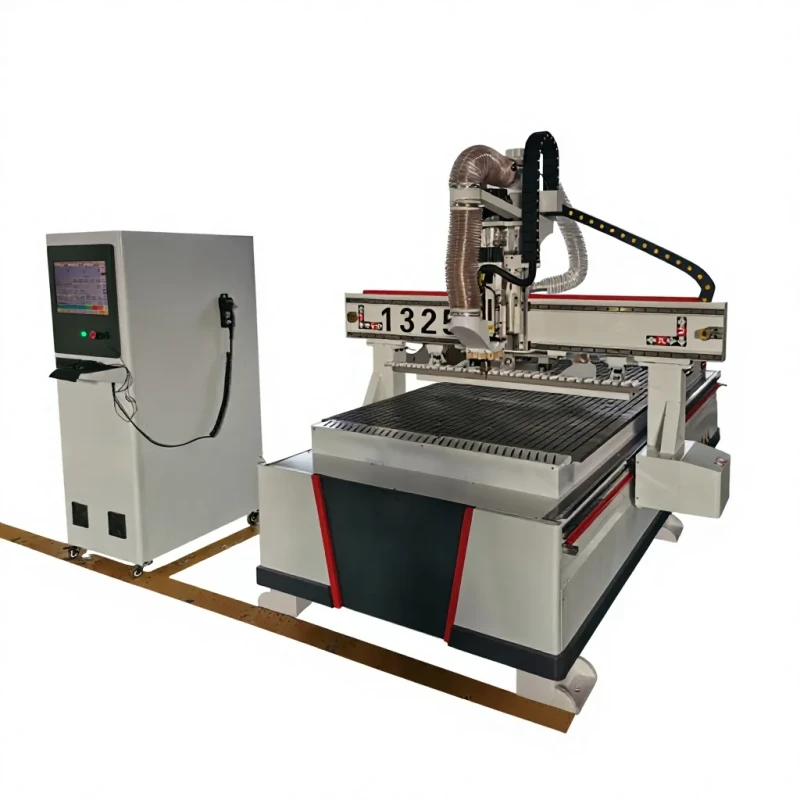

1325 ATC CNC Router 4x8ft 3 Axis Single Spindle Wood Carving Milling Machine with Syntec LNC NC Studio Control 9KW Spindle
1325 ATC CNC Router 4x8ft 3 Axis Single Spindle Wood Carving Milling Machine with Syntec LNC NC Studio Control 9KW Spindle
| number of axes | 3 | voltage | 380 V, 220V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Multifunctional | Accessory Type | Dust collection |
| core components | Motor, Pump, Gear, PLC, Bearing | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2000 | range of spindle speed(r.p.m) | 6000 - 24000 |
| positioning accuracy (mm) | 0.02 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 9KW(12.07hp) | dimension(l*w*h) | 3700*2250*2400mm(145.67*88.58*94.49in) |
| Product name | Woodworking Cnc Router Machine | Keywords | CNC Nesting 1325 Wood Router |
| Control system | Nc-studio/Taiwan LNC/Syntec Control System | Spindle | SCS 9kw ATC Air Cooling Spindle (HQD optional) |
| After-sales Service Provided | Service Machinery Overseas | Guide Rail | Italian PEK/Taiwan HIWIN Square Linear Guide Rail |
| Custom Service | OEM ODM Available for Local Market | Application | Furniture, Cabinet, Woodworking, Advertising Industry |
| Working Voltage | 380V 50Hz | Tool Changer | 12-16 Tools Automatic Tool Change |
