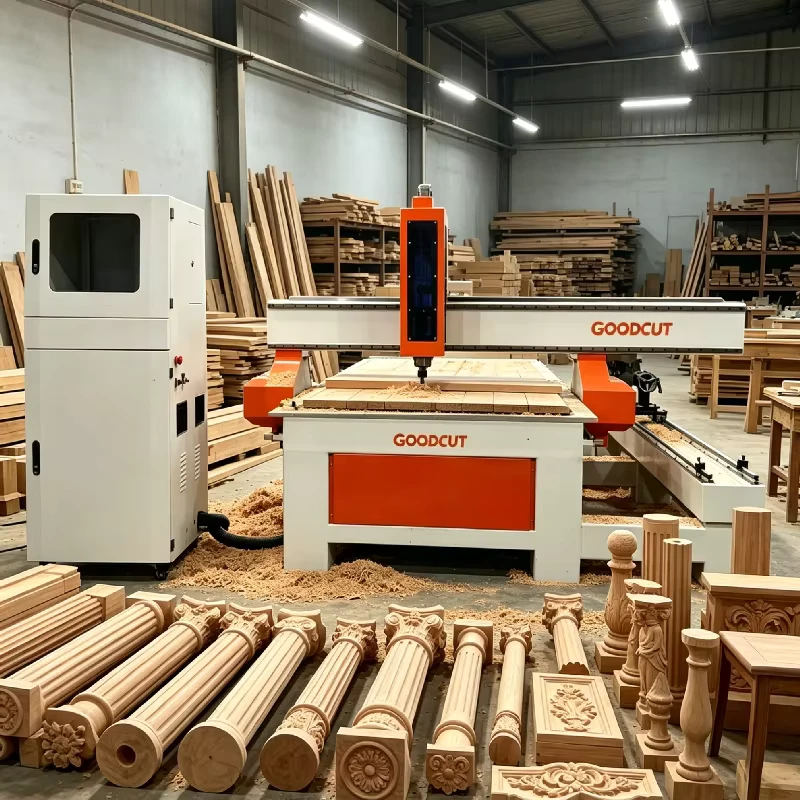

1325 4 Axis Rotary Cnc Wood Carving Machine 4th Axis for Maple Wood Board Cutting

1325 4 Axis Rotary Cnc Wood Carving Machine 4th Axis for Maple Wood Board Cutting
  • 1325 4 Axis Rotary Cnc Wood Carving Machine 4th Axis for Maple Wood Board Cutting

    • 1325 4 Axis Rotary Cnc Wood Carving Machine 4th Axis for Maple Wood Board Cutting

    Request a Quote
    number of axes4voltage220V/380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalcore componentsMotor
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1550
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)4.5
    dimension(l*w*h)1300*2500*200mm(51.18*98.43*7.87in)Product name4 axis rotary cnc wood carving machine 4th axis
    InverterFuling InverterTable SurfaceT-slot Aluminum +PVC
    Other partsrotary and atc 200 cylinder kitOperating systemMach3/ DSP/ Nc studio
    Applicationfor maple wood board cuttingWorking area1300x2500x200mm
    TransmissionHelical Rack PinionSpindleHQD 3.2kw/ 4.5kw Water Cooled Spindle
    DriverStepper Driver AIGT 860H
