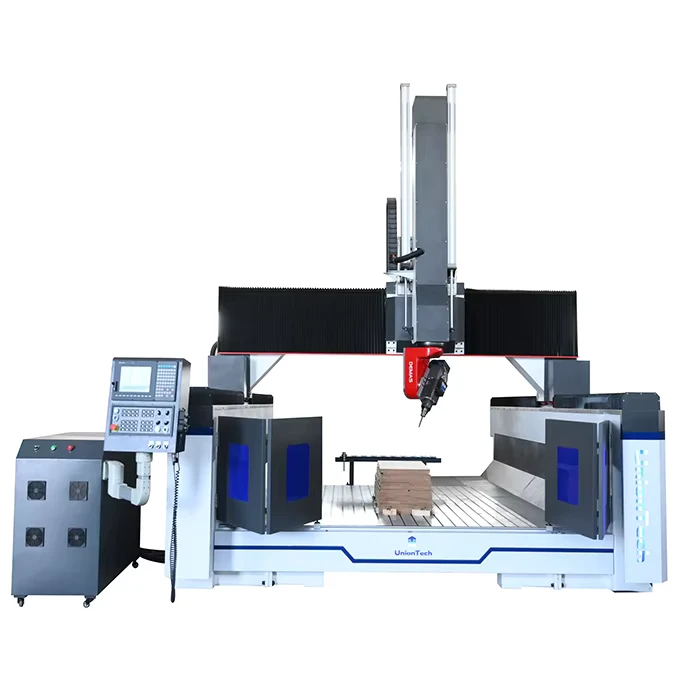

1325 3030 3040 Large 3D Wood EPS Foam Sculpture Making Engraving Carving Cutting 5 Axis 4 Axis CNC Router Syntec DSP

1325 3030 3040 Large 3D Wood EPS Foam Sculpture Making Engraving Carving Cutting 5 Axis 4 Axis CNC Router Syntec DSP
  • 1325 3030 3040 Large 3D Wood EPS Foam Sculpture Making Engraving Carving Cutting 5 Axis 4 Axis CNC Router Syntec DSP

    • 1325 3030 3040 Large 3D Wood EPS Foam Sculpture Making Engraving Carving Cutting 5 Axis 4 Axis CNC Router Syntec DSP

    Request a Quote
    Working Table Size(mm)2000x3000number of axes5
    voltageAC380V/50/60Hz,3PHmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsMultifunctional
    core componentsBearing, Motor, Gear, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)9weight (kg)3000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)2000travel (y axis)(mm)3000
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)9
    dimension(l*w*h)4200*3240*2650mm(165.35*127.56*104.33in)Working area2000x3000x900mm
    SpindleHiteco 5axis headInverterDELTA inverter
    Control systemSyntec Control SystemX, Y TransmissionHelical rack gears&pinion
    Z transmission3210 TBI ball screwMotorYASKAWA servo motor
    DriverYASKAWA servo driverReducerJapanese Shimpo
    Namewooden mold machine
