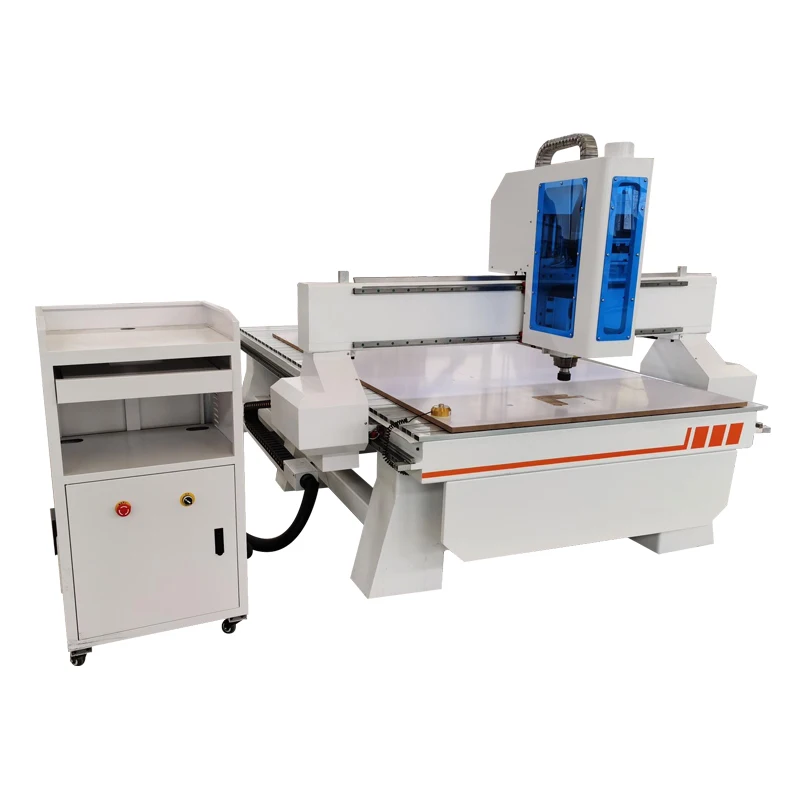

1325 3 Axis 4.5kw Spindle Automatic Vacuum Table NC Studio Woodworking CNC Router for Furniture Making
1325 3 Axis 4.5kw Spindle Automatic Vacuum Table NC Studio Woodworking CNC Router for Furniture Making
| number of axes | 3 | voltage | AC380V/50Hz |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Automatic | Accessory Type | Dust collection |
| core components | Bearing, Motor, Pump, Gear, Engine, spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1000 | range of spindle speed(r.p.m) | 1 - 18000 rpm |
| positioning accuracy (mm) | 0.1 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.05 |
| Spindle Motor Power (kw) | 4.5 | dimension(l*w*h) | 3650mm*2200mm*1800mm(143.70in*86.61in*70.87in) |
| Product name | 1325 cnc wood router | Control system | Ncstudio/DSP system control |
| Spindle | 4.5kw Cooling Spindle | Application | Woodworking |
| Motor | Stepper | Working area | 1300mm*2500mm |
| Transmission | Ball Screw | Software | Ucancam / ArtCam/TYPE3 |
| Weight | 1000kg | Working table | Vacuum Table + Tslot |
