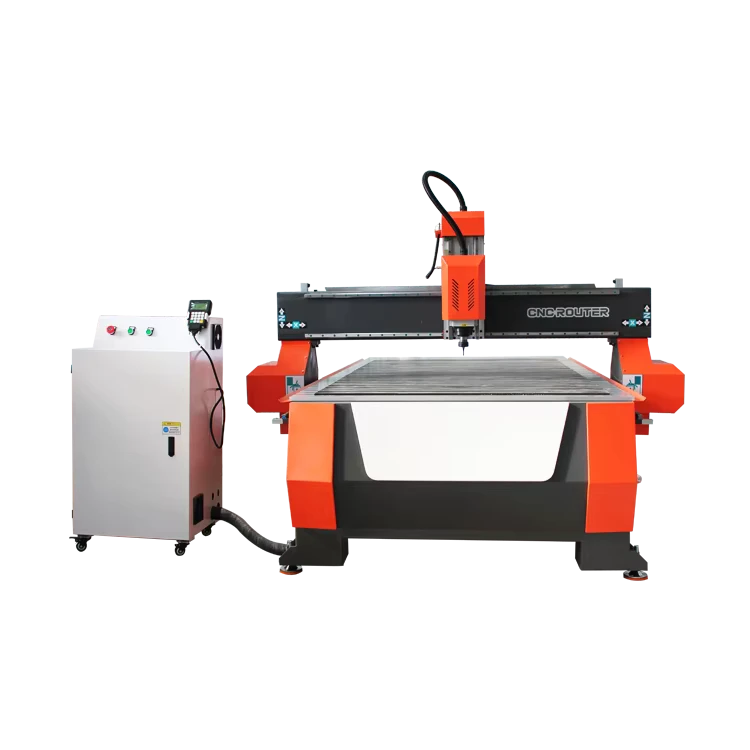

1325 3 4 Axis CNC 3d Automatic Wood Carving Machine Suitable for Wood PVC Acrylic Processing Wood Engraving Machine
1325 3 4 Axis CNC 3d Automatic Wood Carving Machine Suitable for Wood PVC Acrylic Processing Wood Engraving Machine
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 380 V, 220V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Long Service Life |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 6 | weight (kg) | 1200 |
| range of spindle speed(r.p.m) | 1 - 18000 rpm | positioning accuracy (mm) | 0.02 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.02 | Spindle Motor Power (kw) | 3.5KW(4.69hp) |
| dimension(l*w*h) | 3050*2030*2000mm(120.08*79.92*78.74in) | Product name | 3 Axis / 4 Axis Wood Cnc Router |
| Spindle | GDZ/HQD 3KW-6KW Air Cooling Spindle | Control system | NC Studio / MACH3 / DSP A11E control system |
| 3D machining diameter | 100-300MM diameter | Application | 2D/3DWoodworking carving and cutting |
| Inverter | 3.7KW-6KW BEST/Fuling Inverter | Motor | Leadshine 758 Hybrid Servo Motor |
| Table Surface | Vacuum Table+T Slots (T Slot Table) | Spindle speed | 0-24000RPM |
| Tool magazine | Manual tool change |
