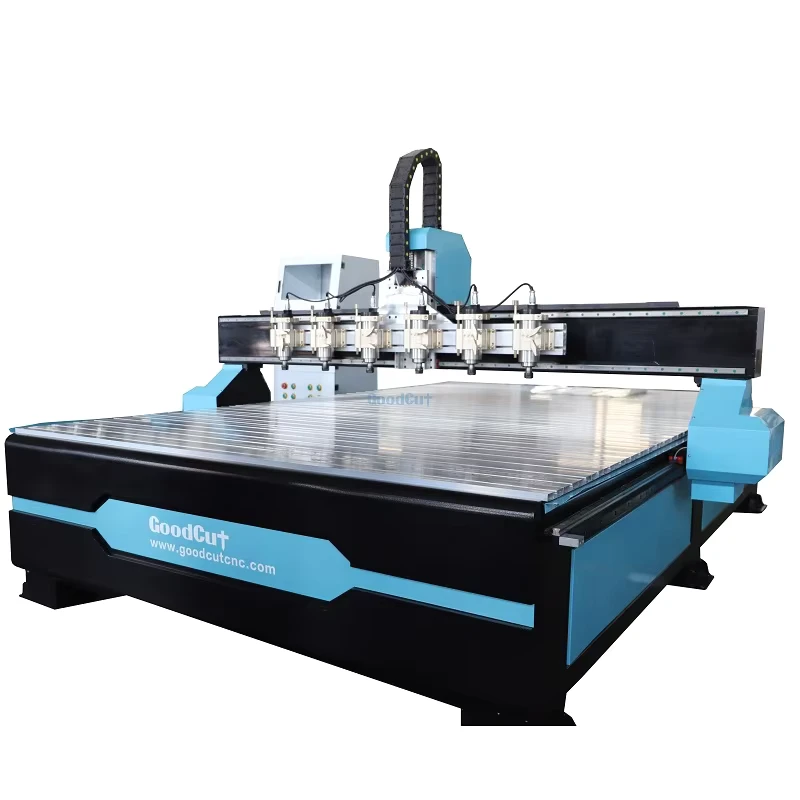

1325 1530 CNC Router 4 Spindle 6 Spindle 8 Spindle for Wood Carving Machine
1325 1530 CNC Router 4 Spindle 6 Spindle 8 Spindle for Wood Carving Machine
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 220V/380V | machine type | CNC Router |
| No. of Spindles | Multi | key selling points | Multifunctional |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3.2 | weight (kg) | 1500 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.02 mm(0in) |
| travel (x axis)(mm) | 2000 mm(78.74in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.02 mm(0in) | Spindle Motor Power (kw) | 3.2 |
| dimension(l*w*h) | 1300*2500*200mm(51.18*98.43*7.87in) | Product name | 1325 1530 CNC Router 4 Spindle 6 Spindle 8 spindle For Wood Carving |
| Working area | 1500x3000mm | Control system | DSP/Mach3 |
| Spindle | 3kw/ 4.5kw HQD/ Italy spindle | Transmission | Taiwan HIWIN 20mm guide rails, Taiwan TBI Ball Screw |
| Drive motor | Leadshine 450B motor, MA860H driver | Optional motor, driver | Delta servo, Yaskawa servo |
| Table | Aluminium T.Slot Table | Inverter | Fuling Inverter |
| Optional parts | dust collection, rotary device | Condition | New |
| Warranty of core components | 2 years |
