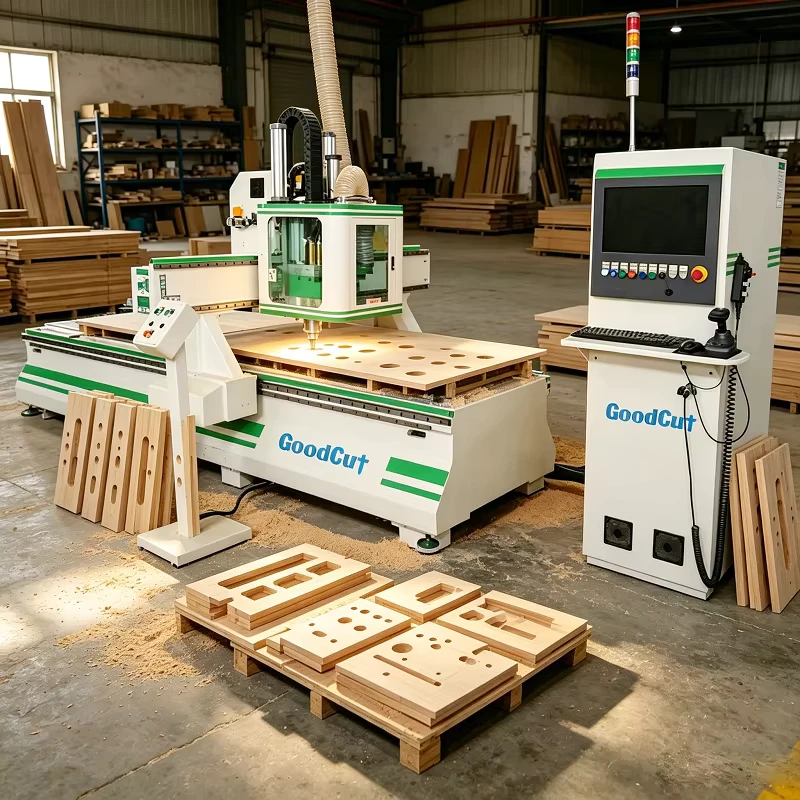

1325 1530 ATC Wood PTP CNC Machining Center Woodworking for Mdf Furniture Process with Horizontal Spindle Drill Bag 5+4

1325 1530 ATC Wood PTP CNC Machining Center Woodworking for Mdf Furniture Process with Horizontal Spindle Drill Bag 5+4
  • 1325 1530 ATC Wood PTP CNC Machining Center Woodworking for Mdf Furniture Process with Horizontal Spindle Drill Bag 5+4

    • 1325 1530 ATC Wood PTP CNC Machining Center Woodworking for Mdf Furniture Process with Horizontal Spindle Drill Bag 5+4

    Request a Quote
    number of axes3voltage220V/380V
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsHigh Productivitycore componentsMotor, PLC, Engine
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2200
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9
    dimension(l*w*h)1300*2500*250mm(51.18*98.43*9.84in)Product namePTP ATC CNC Router Machine Drilling Pack with C Axis
    Working area1300x2500mm, 4*8 feetTool magazine8pcs, 10pcs 12pcs linear tool change magazine
    Control systemTaiwan Syntec Control System, Weihong NK260SpindleHQD 9kw air cooling ATC spindle
    TransmissionTaiwan HIWIN 30mm guide rails, Taiwan TBI Ball ScrewDrive motorLeadshine servo 850w, or Japanse Yaskawa servo motor driver
    Tablevacuum adsorption + T-slotInverterFuling 11kw, Delta Inverter
    Other partspositioning cyliner, 5.5kw 2 bags dust collection, 7.5kw vacuum pump
