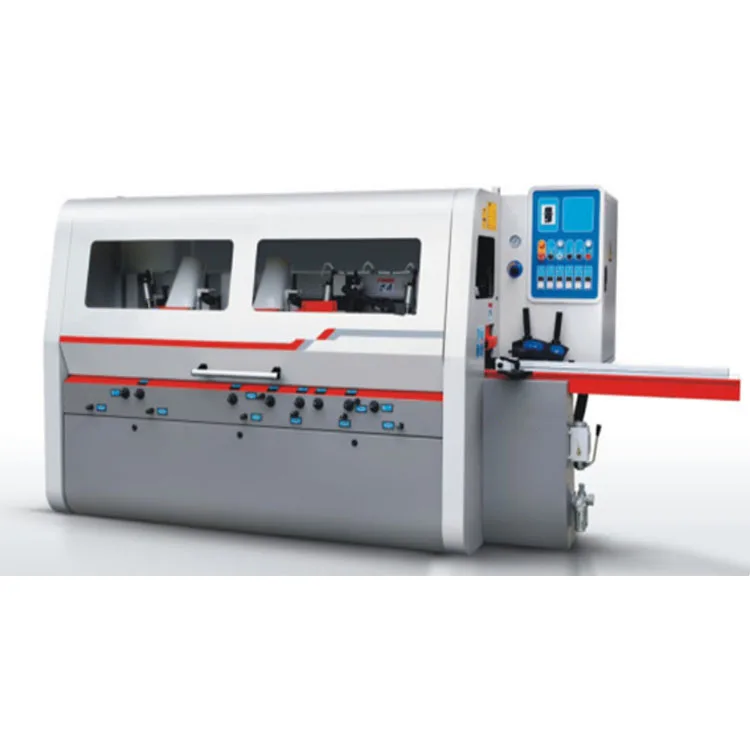

Woodworking Machinery Four Sides Planer Wood 4 Sided Planer Moulder Machine
Woodworking Machinery Four Sides Planer Wood 4 Sided Planer Moulder Machine
| type | Four Side Moulder | max.planing width(mm) | 230 |
| voltage | 380V 50HZ 3PHASE or as your request | power (kw) | 47.25 |
| Cutter Type | Straight | core components | PLC, Gear |
| sliding table equipped | No | machinery test report | Provided |
| Number Of Blades | 4 | video outgoing-inspection | Provided |
| key selling points | High Productivity | max.planing depth(mm) | 160 mm(6.30in) |
| weight (kg) | 3100 KG(6834.33lb) | dimension(l*w*h) | 3490x1620x1860mm(137.40x63.78x73.23in) |
| working width | 25-230mm | working thickness | 8-160mm |
| front working table length | 1970mm | feeding speed | 6-36m/min |
| main spindle diameter | 40mm | Feeding motor power | 5.5kw |
| Pressure | 0.6Mpa | Spindle speed | 6500r/min |
| feeding wheel diameter | 140mm | dust tube diameter | 140mm |
