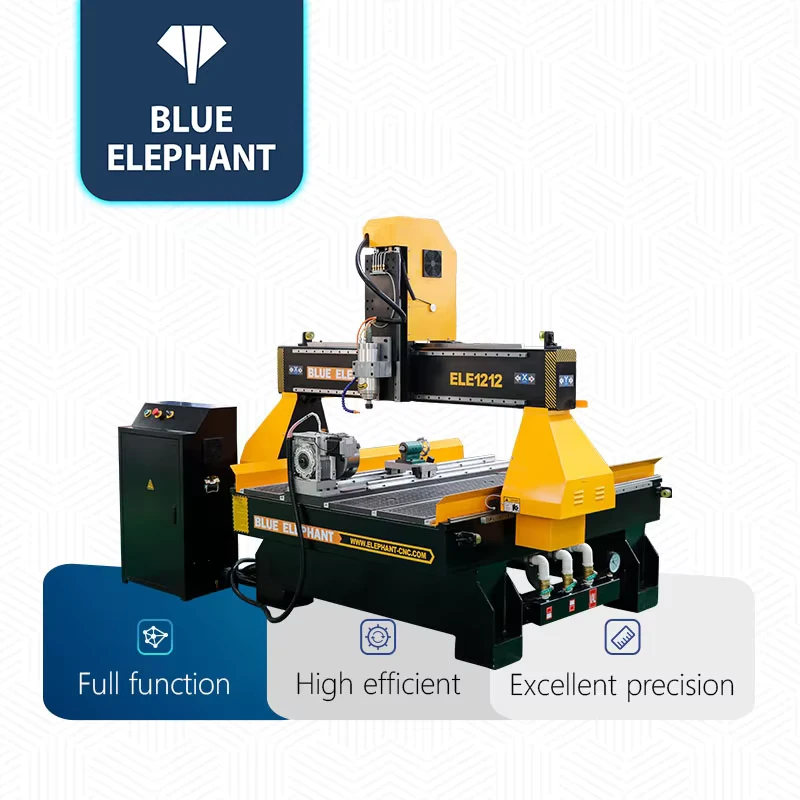

Woodworking Machine 1212 Wood Carving Machine 4x4 Feet Wood CNC Router Machine with Rotary Axis

Woodworking Machine 1212 Wood Carving Machine 4x4 Feet Wood CNC Router Machine with Rotary Axis
  • Woodworking Machine 1212 Wood Carving Machine 4x4 Feet Wood CNC Router Machine with Rotary Axis

    • Woodworking Machine 1212 Wood Carving Machine 4x4 Feet Wood CNC Router Machine with Rotary Axis

    Request a Quote
    Working Table Size(mm)1200×1200number of axes3
    voltage220V 50Hz 1Pmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)5.5weight (kg)1000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03 mm(0in)
    travel (x axis)(mm)1200 mm(47.24in)travel (y axis)(mm)1200 mm(47.24in)
    repeatability (x/y/z) (mm)0.03 mm(0in)dimension(l*w*h)1200*1200*160mm(47.24*47.24*6.30in)
    Product nameCNC Wood Working MachineApplicationKitchen Cabinet Doors Furnitures Making
    Working area1200*1200*160mm(optional)SpindleChangsheng water cooling spindle
    Control systemMach3Motor and driverStepper Motor 450 and LeadshineM 542 driver
    Cooling systemWater mist cooling sprayerSoftware systemArtcam 2012 new version
    InverterFuling InverterTable structureAluminum T-slot table
