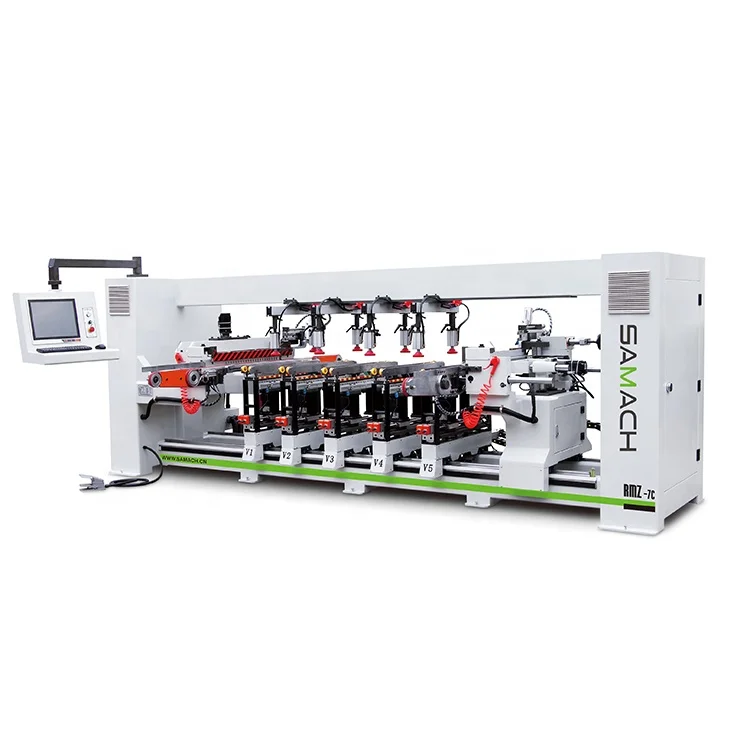

Woodworking CNC Multi Boring Machine Wood Drilling Machine

Woodworking CNC Multi Boring Machine Wood Drilling Machine
  • Woodworking CNC Multi Boring Machine Wood Drilling Machine

    • Woodworking CNC Multi Boring Machine Wood Drilling Machine

    Request a Quote
    typeDrilling MachineusageWoodworking
    voltage380 Vcore componentsMotor, PLC
    video outgoing-inspectionProvidedkey selling pointsEasy To Operate
    power (kw)15weight (kg)2000
    dimension(l*w*h)5550*6800*1950ModelRMZ7C
    Max. center distance between holesL*W=2450mm*672mmMin. center distance between holesL*W=300mm*32mm
    Thickness of Workpiece8-50mmTotal spindle22*2+11*10=154
    Total drill lines5+2Max.drilling diameter35mm(single)13(multi)
    Max.drilling depth50mmSpindle speed2840RPM
    Processing speed13-16pcs/min
