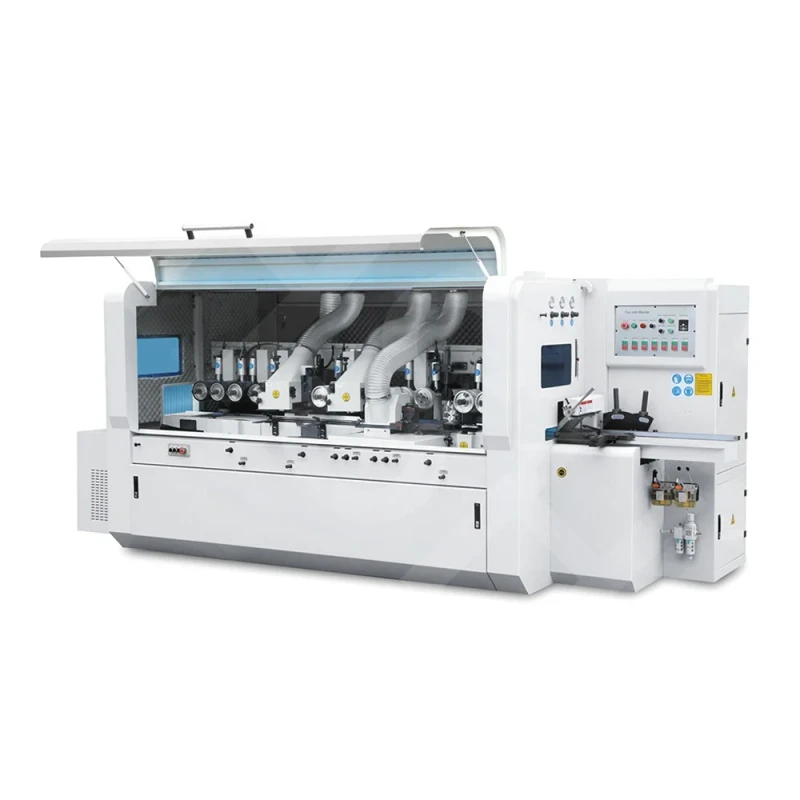

Wood Four Sided Moulder with Multiple Blade Rip Saw Machine for Solid Wood

Wood Four Sided Moulder with Multiple Blade Rip Saw Machine for Solid Wood
  • Wood Four Sided Moulder with Multiple Blade Rip Saw Machine for Solid Wood

    • Wood Four Sided Moulder with Multiple Blade Rip Saw Machine for Solid Wood

    Request a Quote
    typeFour Side Moulder with Sawing Machinemax.planing width(mm)230mm(9.06in)
    voltage380V/50Hz 3PHS & Customizedpower (kw)78.75kW(105.61hp)
    Cutter TypeSpiralcore componentsMotor, Planing cutter
    sliding table equippedNomachinery test reportProvided
    Number Of Blades141pcs 30*12*1.5mmvideo outgoing-inspectionProvided
    key selling pointsFour Side Moulder with Sawing Machinemax.planing depth(mm)80
    weight (kg)4500dimension(l*w*h)4560*1730*1870mm(179.53*68.11*73.62in)
    Min cutting length550/300mmBlade diameter40mm
    Blade speed7000r/minSaw spindle diameter50mm
    Saw blade diameter305mmSaw spindle speed7000r/min
    Feeding speed5~20m/minTrimming blade diameter145/150mm
    1st lower blade diameter125mm
