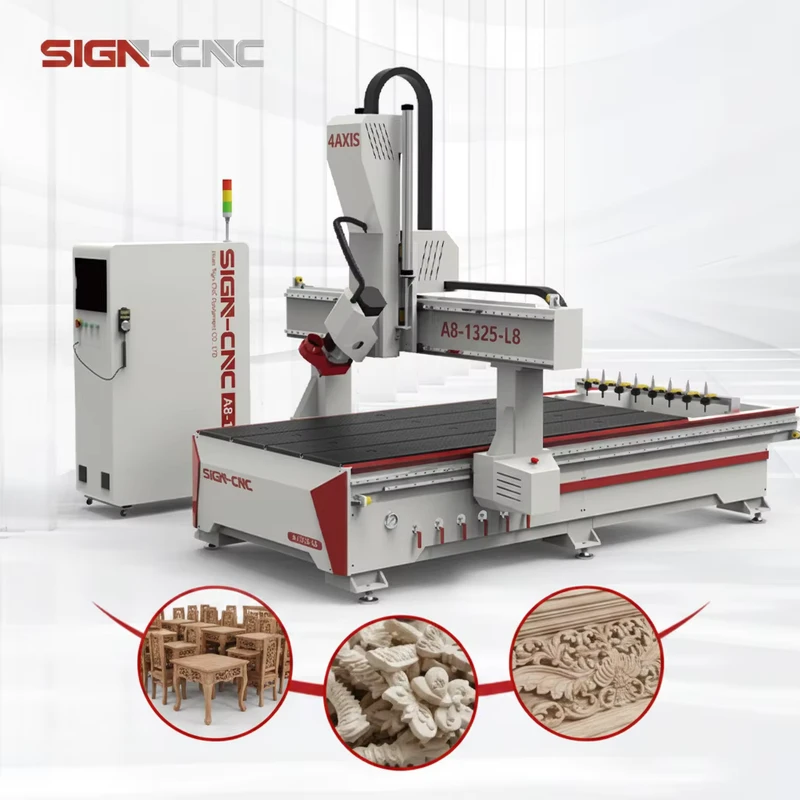

Wood Engraving Machine 1325 MDF PVC Acrylic Cutting 3D CNC Wood Engraver 4 Axis Rotary CNC Router Sign Making Machine

Wood Engraving Machine 1325 MDF PVC Acrylic Cutting 3D CNC Wood Engraver 4 Axis Rotary CNC Router Sign Making Machine
  • Wood Engraving Machine 1325 MDF PVC Acrylic Cutting 3D CNC Wood Engraver 4 Axis Rotary CNC Router Sign Making Machine

    • Wood Engraving Machine 1325 MDF PVC Acrylic Cutting 3D CNC Wood Engraver 4 Axis Rotary CNC Router Sign Making Machine

    Request a Quote
    number of axes4voltage110 V, AC380V/50HZ
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalAccessory TypeDust collection
    core componentsBearing, Motor, Pump, Gear, PLC, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1800positioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9kw(12.07hp)
    dimension(l*w*h)1300*2500*250mm(51.18*98.43*9.84in)Spindle power9.0KW ATC air-cooled spindle swing 180°
    InverterDelta high frequency 11KW inverterTable SurfaceVacuum table with 7.5KW vacuum pump
    Motor and driverSyntec 1000W AC servo motor and driverReducerJapan Shimpo planetary reducer
    Control systemSyntec 60WE bus control system (4-axis)Tool magazineLinear Tool Magazine
    DevicesFrench Schneider electrical devicesSoftwareArtcam+ postprocessor
    ApplicationKitchen Cabinet Doors Furnitures Making
