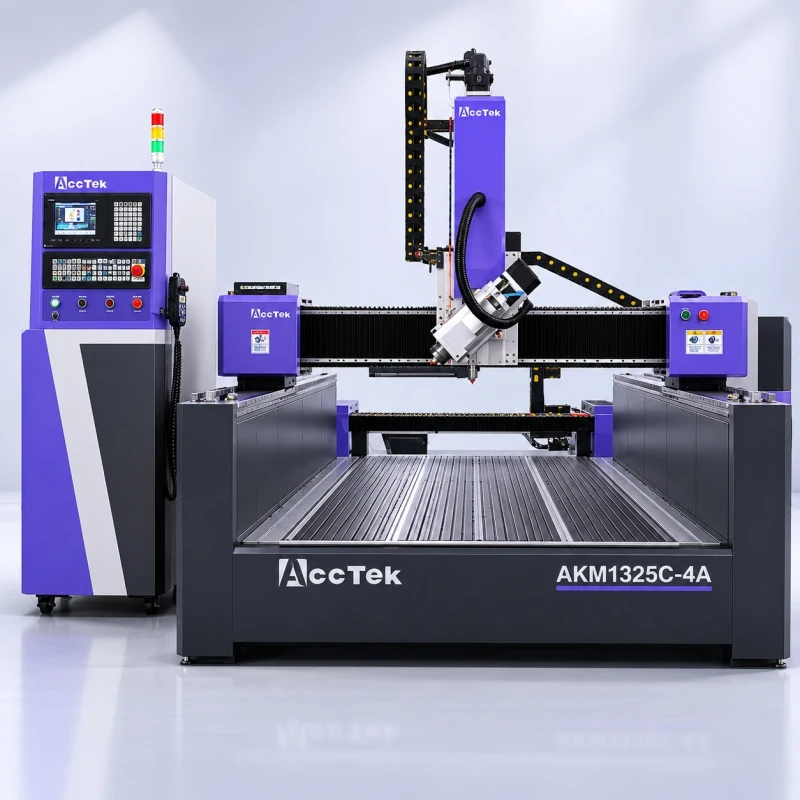

Wood CNC Router Machine 4 Axis CNC Router Panel Furniture Cutting Router CNC for Wood Foam AKM1325-4A
Wood CNC Router Machine 4 Axis CNC Router Panel Furniture Cutting Router CNC for Wood Foam AKM1325-4A
| number of axes | 4 | voltage | 380 V |
| machine type | CNC Router | No. of Spindles | 1 |
| key selling points | Easy To Operate | Accessory Type | Dust collection |
| core components | Engine, Motor | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2000 | range of spindle speed(r.p.m) | 0 - 24000 |
| positioning accuracy (mm) | 0.03 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.03 |
| Spindle Motor Power (kw) | 9.0 | Key word | Wood CNC Router Machine 4 Axis |
| Name | 4 Axis CNC Router | Working area | 1300*2500*450mm |
| Controller | Syntec controller | Spindle | 9.0kw 4 axis spindle |
| Motor and Driver | Delta servo motor and driver | XY axis Transmission | rack and pinion rack |
| Rails | Hiwin square rails 25mm | Warrenty | 3 Years |
| Table | T-slot and vacuum table |
