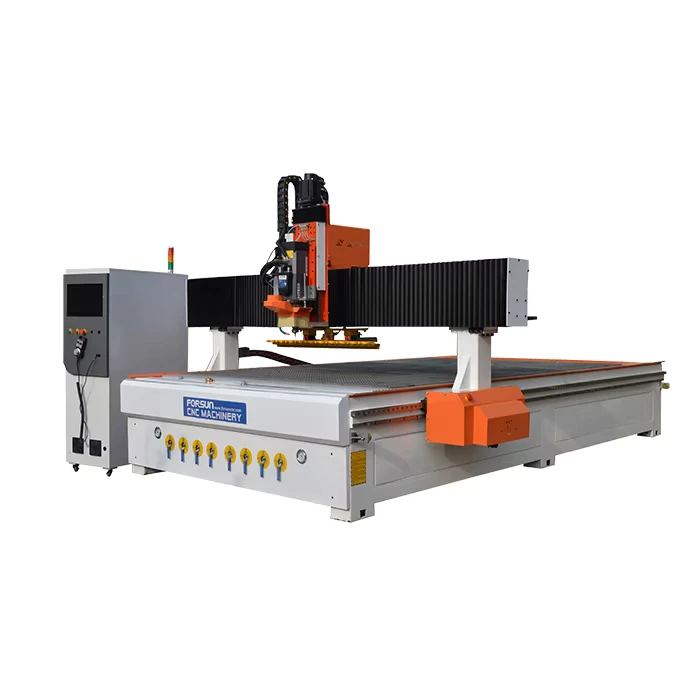

Wood Carving ATC Machine Big Rotary Axis Automatic ATC 1325 4 Axis CNC 3D Router With Horizontal Spindle
Wood Carving ATC Machine Big Rotary Axis Automatic ATC 1325 4 Axis CNC 3D Router With Horizontal Spindle
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | AC380V/50Hz | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 9 | weight (kg) | 1800 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.03 mm(0in) | Spindle Motor Power (kw) | 3 |
| dimension(l*w*h) | 3200*2200*1900mm(125.98*86.61*74.80in) | Name | ATC CNC Router Machine |
| Material | wood,PVC,MDF,soft metal, ect | Linear guide | HIWIN Linear Guide and ball screw |
| Spindle | 9kw ATC Spindle | After-salesService Provided | 24 hours 7 days after-sales service |
| Table structure | T-Slot vacuum woke tavble | Software | Artcam |
| Control system | DHTN/MACH3/Siemens/NC | Inverter | Delta Inverter |
| Drive motor | 1500W servo motor |
