Professional manufacturer of woodworking machinery

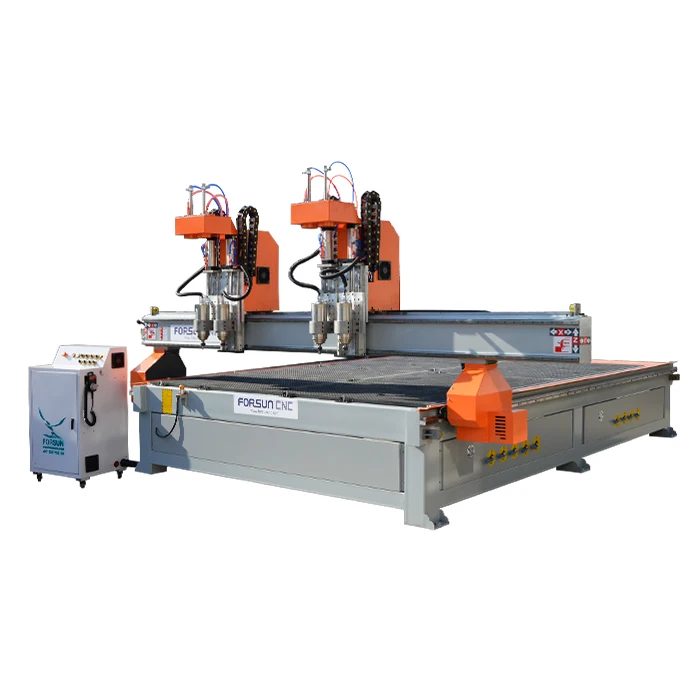

Whole House Customization LUDO Machining Center Straight Row Tool Changer CNC Router ATC Furniture Cutter Machinery
Whole House Customization LUDO Machining Center Straight Row Tool Changer CNC Router ATC Furniture Cutter Machinery
| number of axes | 2 | voltage | 380 V |
| machine type | CNC Router | No. of Spindles | Double |
| key selling points | Easy To Operate | core components | Bearing, Motor, Pump, Gear, Engine, Pressure Vessel, PLC |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 2000 |
| range of spindle speed(r.p.m) | 1 - 24000 | positioning accuracy (mm) | 0.03 |
| travel (x axis)(mm) | 2000 | travel (y axis)(mm) | 3000 |
| repeatability (x/y/z) (mm) | 0.03 | Spindle Motor Power (kw) | 9 |
| dimension(l*w*h) | 3170*1920*1850mm(124.80*75.59*72.83in) | Item | Forsun CNC Double Heads CNC Router with Double Spindles |
| Advantage | Can work together or only oneself | Table | T-Slot Vacuum Table |
| Working area | 1500x3000mm or 1300*2500mm | Spindle | 4.5kw Air Cooling Spindle |
| Inverter | Delta Inverters | Motor | Stepper Motor |
| Transmission | XY-axis:rack Z axis Ball screw | Keywords | Double Heads CNC Router |
| Other Name | CNC Router with Double Heads |
