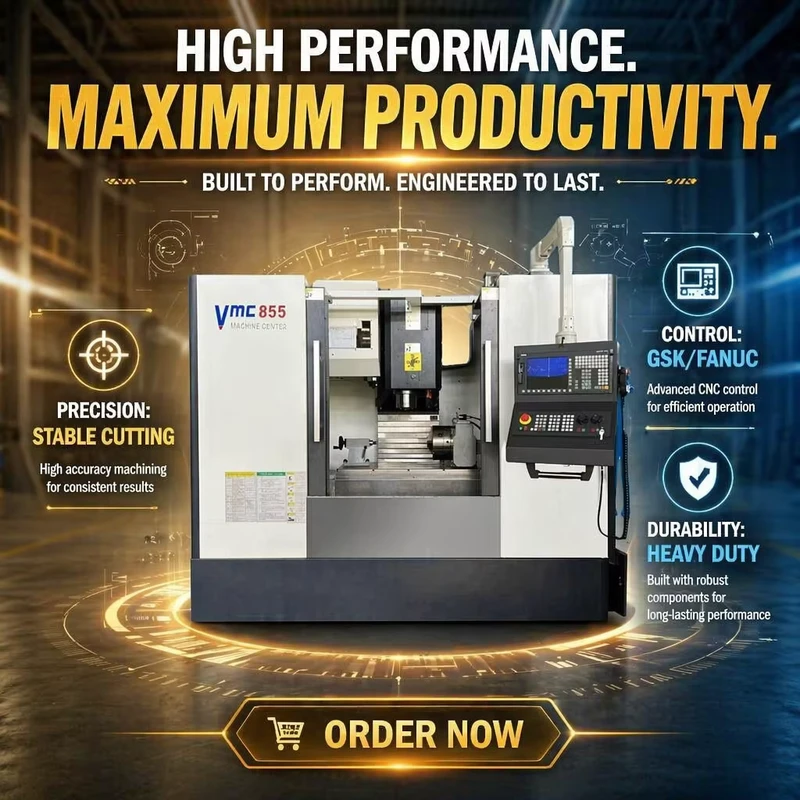

Vmc855 Vertical Machining Center GSK CNC Control System BT40 Spindle Taper Spindles 24 Tools CNC Milling Machine
Vmc855 Vertical Machining Center GSK CNC Control System BT40 Spindle Taper Spindles 24 Tools CNC Milling Machine
| type | VERTICAL | number of axes | 3 |
| voltage | 380 V | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 550 | table travel (z) (mm) | 500 |
| positioning accuracy | 0.01 | repeatability (x/y/z) (mm) | 0.008 |
| spindle taper | BT40 | cnc control system | FANUC/GSK/SIEMENS |
| machining capacity | Heavy Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Multifunctional | max. table load(kg) | 500 |
| range of spindle speed | 50 - 10000 | dimension(l*w*h) | 2600*2450*2400 |
| weight | 6500 | After-sales Service Provided | Engineers available to service machinery overseas |
| Product name | machine milling parts mechanical spare parts milling machine for sale | Name | VMC855 |
| Machine Type | Cnc Vertical Milling Machine | Table size | 1050*500mm |
| Spindle taper | BT40 | Precision | High Precision |
| Spindle Speed | 8000rpm | Usage | Processing Machine |
| Tool changing time | 1.8s |
