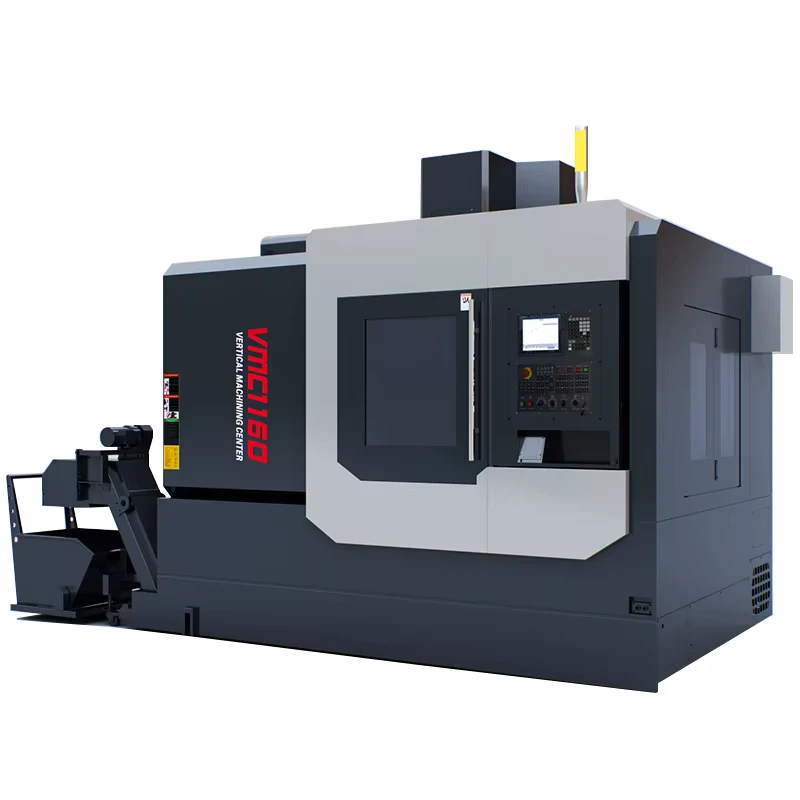

VMC1160 CNC Machining Center High Speed of Revolution Manufacturer
VMC1160 CNC Machining Center High Speed of Revolution Manufacturer
| type | VERTICAL | number of axes | 3 |
| voltage | As your demand | table travel (x) (mm) | 1100 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| positioning accuracy | ±0.008 | repeatability (x/y/z) (mm) | ±0.005 |
| spindle taper | BT40 | cnc control system | KND |
| machining capacity | Heavy Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| max. table load(kg) | 800 kg(1763.70lb) | range of spindle speed | 10 - 10000 |
| dimension(l*w*h) | 3300*2400*3000 | weight | 6300 |
| Product name | VMC1160 Vertical Machining Center | Machine Type | Cnc Milling Machine Vertical |
| Keyword | Cnc 3 Axis Milling Machine | Application | Metal Milling Drilling Tapping |
| Function | Milling, boring and drilling holes, tapping | Color | Customized |
| Usage | Processing Machine | Axis | 3 Axis |
| Advantage | Easily Operated | Table size | 1200*600mm |
| Spindle Bore(mm) | BT40 | Feed Speed(mm/min) | 0 - 36 mm/min |
| Tool Post Stations | 24 | Rapid Feed Speed(mm/min) | 0 - 36 mm/min |
| Cutting torque | 70 |
