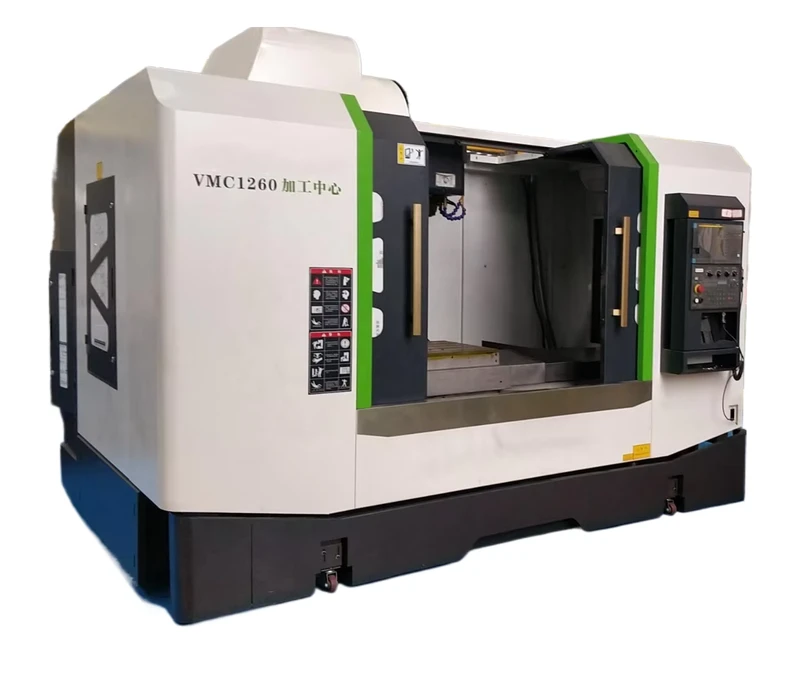

vertical cnc machining center for sale VMC1260 high precision machine center
vertical cnc machining center for sale VMC1260 high precision machine center
| type | VERTICAL | table travel (x) (mm) | 1200 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 650 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.005 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 16, 12, 24 | cnc control system | can be customized |
| machining capacity | Heavy Duty | voltage | customized |
| table size | 1300X600 | machinery test report | Not Available |
| video outgoing-inspection | Provided | min. time of tool change(s) | 0.5 |
| key selling points | Multifunctional | weight (t) | 9 |
| max. table load(kg) | 1000 | dimension(l*w*h) | 3400x2420x2600mm(133.86x95.28x102.36in) |
| range of spindle speed | 50 - 8000 r.p.m | rapid feed speed | 1 - 1000 mm/min(0.04-39.37in/min) |
| Model | VMC1260 | TABLE SIZE | 1300x600mm |
| X.Y.Z-AXIS TRAVEL | 1200x600x650mm | distance from spindle center to column | 675mm |
| X,Y,Z feeding rate | 1-1000mm/min | Spindle speed | 50-8000r/min |
| Spindle taper | BT40-150 | Spindle motor | 15kw |
| Re-positioning accuracy | ±0.003mm | Net weight | 9000kg |
