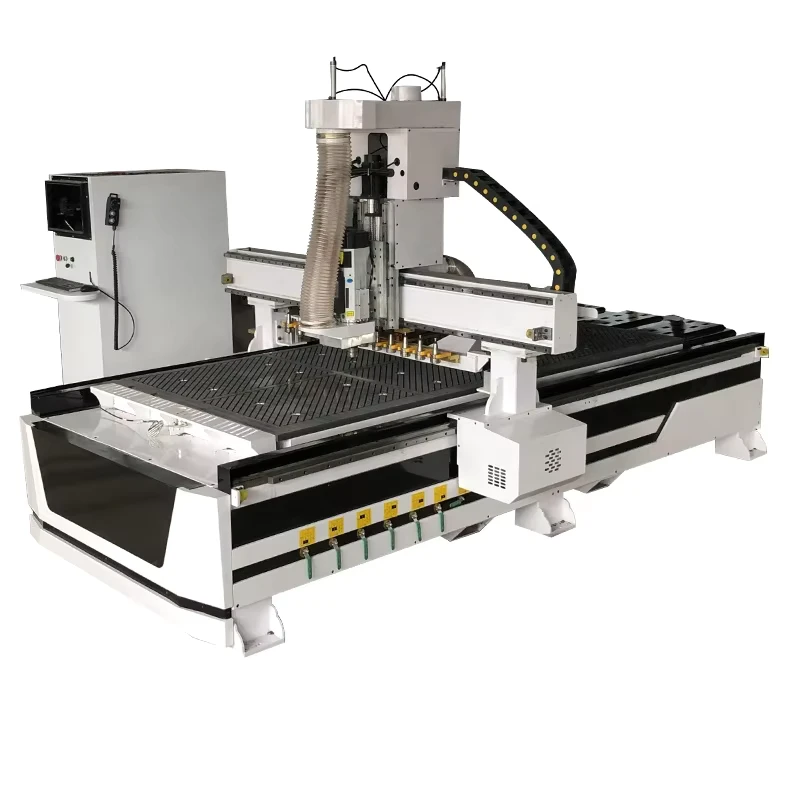

TOHAN 3D ATC Engraving Drilling CNC Cutting Machine Wood Carving Woodworking Router 1328 Table Router 1325 CNC Router
TOHAN 3D ATC Engraving Drilling CNC Cutting Machine Wood Carving Woodworking Router 1328 Table Router 1325 CNC Router
| Working Table Size(mm) | 1300*2800 | number of axes | 3 |
| voltage | AC380V/50HZ | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | Easy To Operate |
| core components | Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 25 | weight (kg) | 2600 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.01 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2800 mm(110.24in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 9kw(12.07hp) |
| dimension(l*w*h) | 4000*2200*2200mm(157.48*86.61*86.61in) | Machine body | Heavy fuselage, five-sided milling machining center machining |
| Drive motor | 1.5KW pure servo motor | Spindle | 9KW HQD air-cooled spindle |
| Machine guide | Taiwan High precision, X-axis 25, Y-axis 30 | rack | 1.5M high precision grinding rack |
| Control System | LNC | Work surface | Vacuum adsorption table, 7 adsorption zones |
| Lubrication system | Three-axis all-round automatic lubrication | Vacuum pump | 7.5KW water cycle vacuum pump |
| Dust collector | 4KW double vacuum cleaner |
