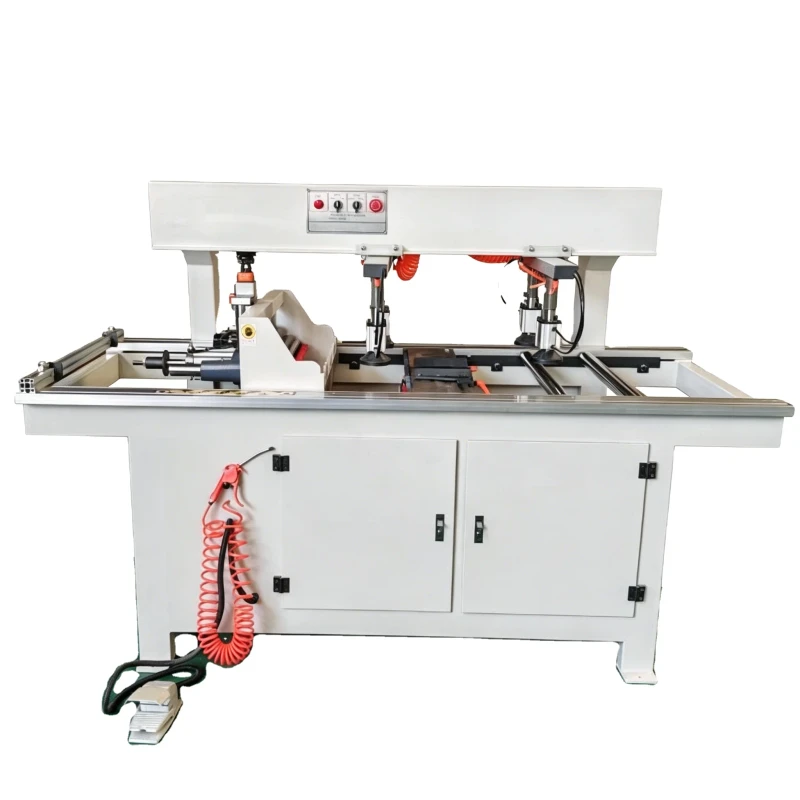

STR Pneumatic Double Row Boring Machine for Furniture Making Horizontal Vertical Multi Spindle Drilling Machine Woodworking Tool

STR Pneumatic Double Row Boring Machine for Furniture Making Horizontal Vertical Multi Spindle Drilling Machine Woodworking Tool
  • STR Pneumatic Double Row Boring Machine for Furniture Making Horizontal Vertical Multi Spindle Drilling Machine Woodworking Tool

    • STR Pneumatic Double Row Boring Machine for Furniture Making Horizontal Vertical Multi Spindle Drilling Machine Woodworking Tool

    Request a Quote
    voltage380 Vautomatic gradeManual
    core componentsMotormachinery test reportProvided
    video outgoing-inspectionProvidedkey selling pointsEasy To Operate
    motor speed2840r/mindrill diameter35MM(1.38in)
    power(w)1500weight (kg)600
    dimension(l*w*h)2200*2500*1620mm(86.61*98.43*63.78in)Table Tilt Angle0-45° left/right rotation, 360° rotation
    Voltage380V/50HZAir Pressure0.6-0. 8MPa
    Max. Boring Diameter35mmTotal Number of Boring Spindles21*2
    Spindle Spacing32mmSpindle Speed2840r/min
    Motor Power1. 5kw*2Max. Boring Length2200mm
    Max. Boring Width0-1250mmPackaging Dimensions2200*1140*1480mm
