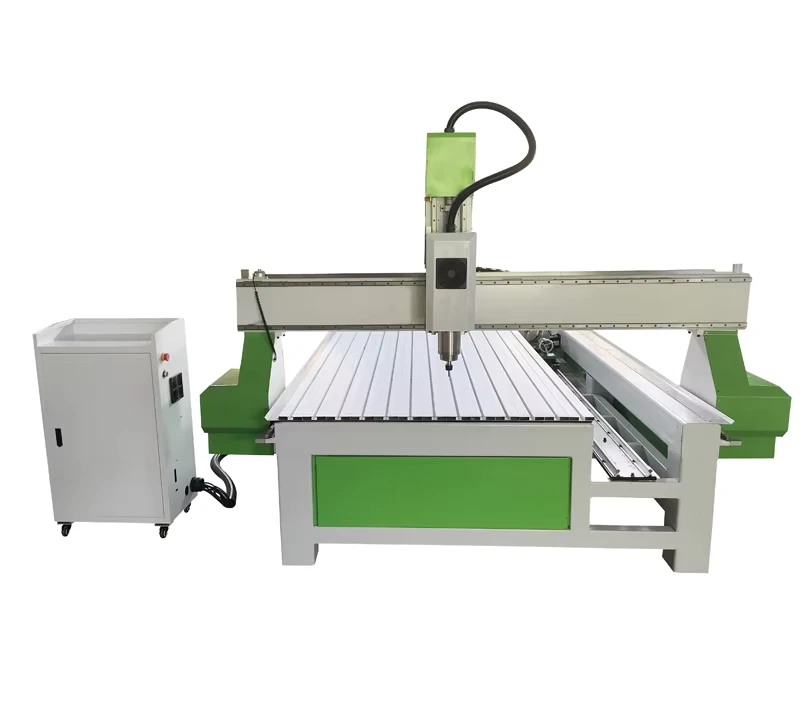

Stone Rotary Shaft Engraving Machine 3D Relief Wood Cutting Saw CNC Router

Stone Rotary Shaft Engraving Machine 3D Relief Wood Cutting Saw CNC Router
  • Stone Rotary Shaft Engraving Machine 3D Relief Wood Cutting Saw CNC Router

    • Stone Rotary Shaft Engraving Machine 3D Relief Wood Cutting Saw CNC Router

    Request a Quote
    Working Table Size(mm)1300×2500number of axes3
    voltage380V/220V,1 phash/3phashmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsOthercnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)7weight (kg)1200
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)3.5
    dimension(l*w*h)3200*2200*1850mm(125.98*86.61*72.83in)Product nameCNC Wood Working Machine
    ApplicationMDF WOOD ACRYLIC ALUMINUMVoltage220V/380V 50/60HZ
    Spindle3.5kw Air Cooling SpindleControl systemA11 DSP/NcStudio Control System
    Working area1300x2500x200mmInverterBest/Fuling Inverter
    SoftwareUcancam / ArtCam/TYPE3Driving systemLeadshine Drive
    Motor and driverStepper Moter
