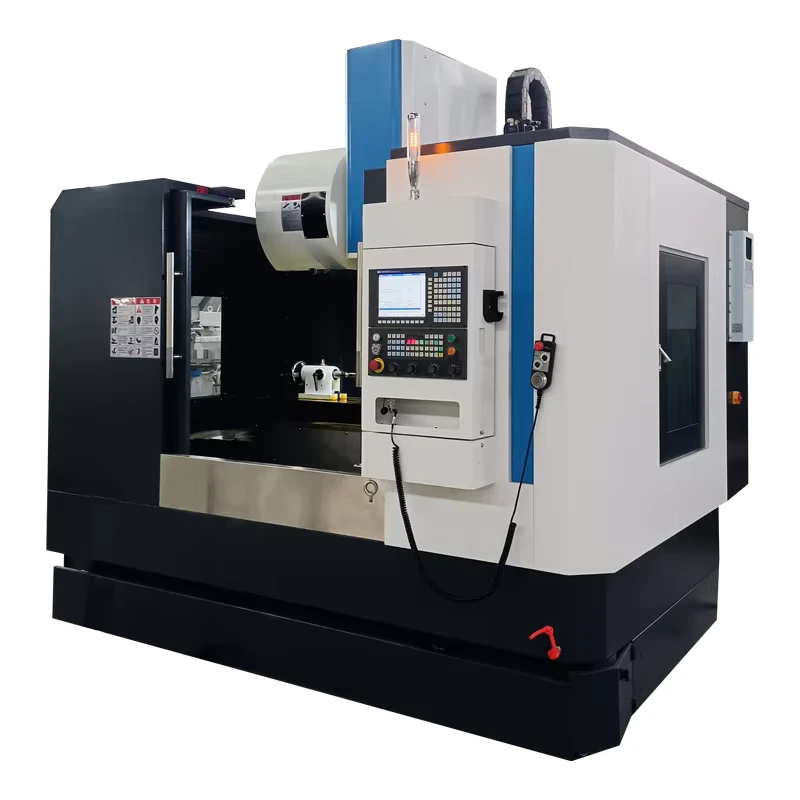

Stainless Steel CNC Vertical Machining Center
Stainless Steel CNC Vertical Machining Center
| type | VERTICAL | table travel (x) (mm) | 1500 |
| table travel (y) (mm) | 800 | table travel (z) (mm) | 700 |
| repeatability (x/y/z) (mm) | 0.005 | positioning accuracy | 0.008 |
| spindle taper | BT40-150 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | GSK |
| machining capacity | Heavy Duty | voltage | 380v |
| table size | 1700*800 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 4 |
| key selling points | Automatic | weight (t) | 12 |
| max. table load(kg) | 800 | dimension(l*w*h) | 4300*3400*2800 |
| range of spindle speed | 80 - 8000 r.p.m | rapid feed speed | 1 - 10000 mm/min(0.04-393.70in/min) |
| Product name | CNC Vertical Machining Center | Application | Metal Machining |
| Product type | vertical Machining Center | Precision | High Precision |
| CNC or Not | CNC Systemn | Certification | CE ISO9001 |
| Processing | Metal | Control system | SIEMENS GSK KND FANUC MITSUBISHI(optional) |
| optimal ambient temperature | 15-25 |
