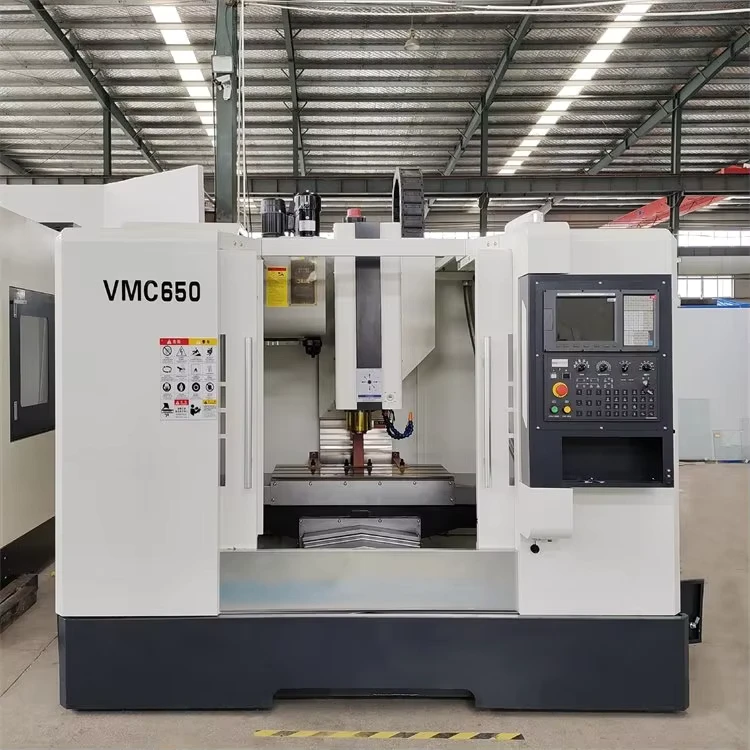

Small CNC Mill Machine Tool VMC650 Automatic Milling CNC Machine Machining Center 3 4 5 Axis for Metal Mold Processing
Small CNC Mill Machine Tool VMC650 Automatic Milling CNC Machine Machining Center 3 4 5 Axis for Metal Mold Processing
| type | VERTICAL | table travel (x) (mm) | 900 |
| table travel (y) (mm) | 460 | table travel (z) (mm) | 480 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.005/300mm |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 16, 12, 24 | cnc control system | FANUC |
| machining capacity | Heavy Duty | voltage | 380 V, 220 V |
| table size | 1000*420 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | High-Accuracy, Competitive Price, Automatic, Multifunctional, Easy To Operate | weight (t) | 3.2 |
| max. table load(kg) | 400 | dimension(l*w*h) | 2400*1800*2550mm(94.49*70.87*100.39in) |
| range of spindle speed | 1 - 10000 r.p.m | rapid feed speed | 1 - 10000 mm/min(0.04-393.70in/min) |
| Precision | High Precision milling Machine | X/Y/Z Axis Travel | 900/460/480mm |
| Table size | 1000*420mm | X/Y/Z-axis travel guide way type | Taiwan Hiwin Linear guideway |
| Keywords | Vmc Machine Center | Product name | CNC Vertical Machining Center |
| Product type | Cnc 3/4/5 Axis Machine | Machine Type | CNC Vertical Machine Centers |
| Control system | Fanuc Mitsubishi Siemens Gsk System | Tool Changer | ATC 24 Tools Changer |
