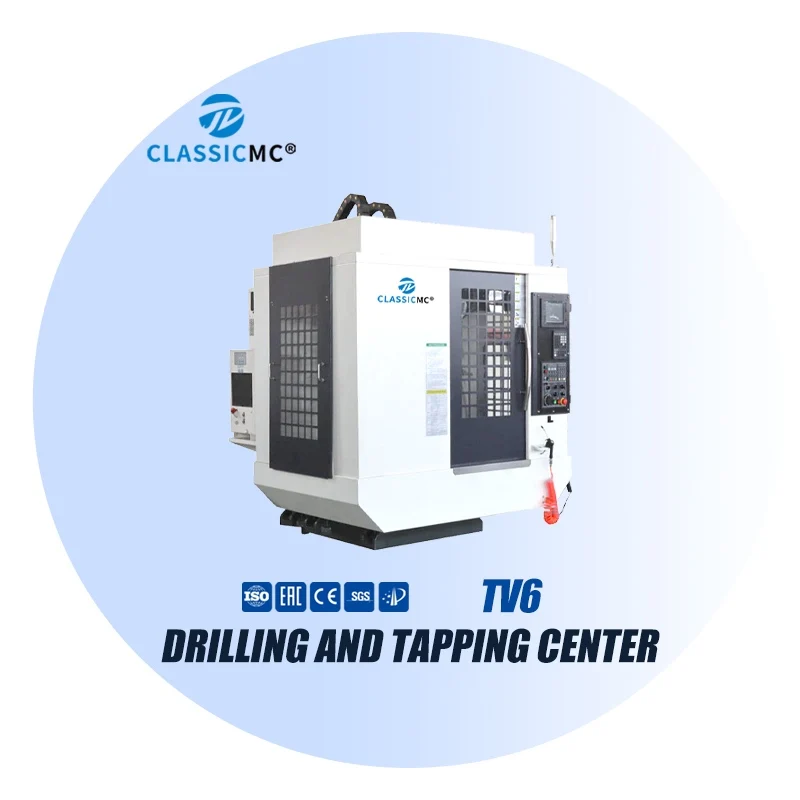

Rapid TV6 CNC Side Drilling Machine 16 Tool Magazine Servo Feed Flange Plate Hole Machining Center
Rapid TV6 CNC Side Drilling Machine 16 Tool Magazine Servo Feed Flange Plate Hole Machining Center
| type | VERTICAL | table travel (x) (mm) | 600 |
| table travel (y) (mm) | 400 | table travel (z) (mm) | 350 |
| repeatability (x/y/z) (mm) | ±0.001 | positioning accuracy | ±0.005 |
| spindle taper | BT30 | no. of spindles | Twin |
| tool magazine capacity | 16 | cnc control system | FANUC |
| machining capacity | Light Duty | voltage | 220 V, 380 V, 480V |
| table size | 700*420 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Automatic | weight (t) | 2.5 |
| max. table load(kg) | 1500 | dimension(l*w*h) | 2300* 2200 *2200mm(90.55*86.61*86.61in) |
| range of spindle speed | 15000 - 24000 | rapid feed speed | 5 - 511 |
| T slot(number-width-pitch) | 3-14*125mm | Spindle forms | Direct-type |
| Machine Type | CNC Tapping Machining Center | Application | General Machinery Processing |
| Processing | Metal Cutting Cnc Milling Machine | Control system | SIEMENS GSK FANUC (optional) |
| Function | Machining Metal | Color | Customer's Requirement |
| Certification | CE ISO |
