Professional manufacturer of woodworking machinery

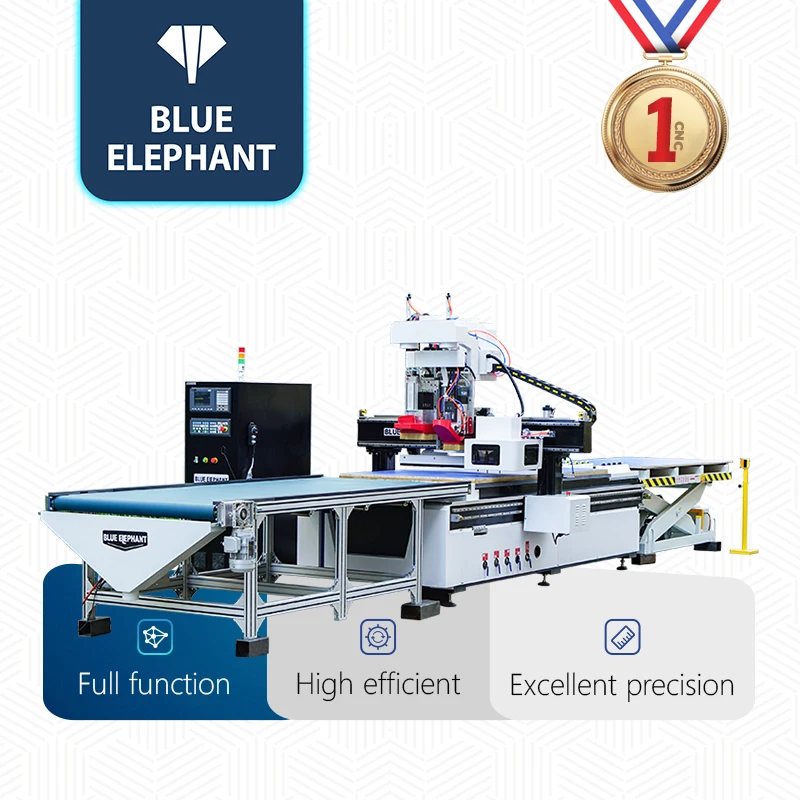

Production Furniture Line CNC Router Wood Working Automatic Loading and Unloading Nesting CNC Cabinet Making Machine Price
Production Furniture Line CNC Router Wood Working Automatic Loading and Unloading Nesting CNC Cabinet Making Machine Price
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 380V,3phase, 50HZ | machine type | Nesting CNC Router |
| No. of Spindles | ATC | key selling points | Automatic |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 15 | weight (kg) | 2600 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.03 mm(0in) | Spindle Motor Power (kw) | 9KW(12.07hp) |
| dimension(l*w*h) | 1300x2500x200mm(51.18x98.43x7.87in) | Tool Magazine | 12 pieces with Carousel Tools Changer |
| Spindle | 9KW Italy ATC Air Cooled spindle | Inverter | Taiwan Delta B Model 11.0KW |
| Reducer | Japan Shimpo reducer | Motor and drive | Japan YASKAWA 850W servo motor and drivers |
| Collect | ISO30 tool holders with ER32 collect | Auxiliary head | vertical boring drilling |
| Auxiliary equipment | auto loading and auto unloading table | Tool sensor cablibration | automatic Tool sensor cablibration |
| Showroom Location | Mexico |
