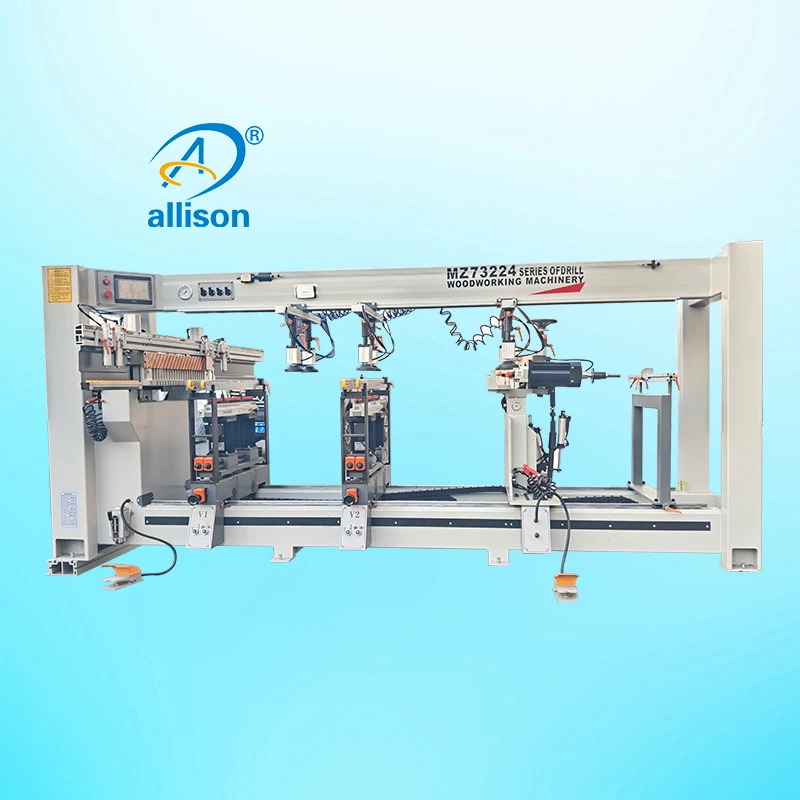

MZ73224 Multi Spindle Line Boring Machine Four Rows Horizontal Drilling Boring Machine

MZ73224 Multi Spindle Line Boring Machine Four Rows Horizontal Drilling Boring Machine
  • MZ73224 Multi Spindle Line Boring Machine Four Rows Horizontal Drilling Boring Machine

    • MZ73224 Multi Spindle Line Boring Machine Four Rows Horizontal Drilling Boring Machine

    Request a Quote
    voltage380 Vcnc or notCNC
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsEasy To Operatecore componentsMotor
    Drill Bit Point Angle90°dimension(l*w*h)4000*2500*1620mm(157.48*98.43*63.78in)
    Weight (KG)1300Maximum Drilling Diameter:35 mm
    Maximum Drilling Depth:60 mmTotal Number of Drill Spindles:22 spindles *2 rows + 11 spindles * 4 rows
    Processing Hole Pitch:140-2450 mmSpindle Speed:2800 rpm
    Compressed Air Pressure:0.6-0.8 MPaTotal Motor Power:1.5 kW* 6 = 9 kW
    Installation Dimensions:4000 *2500 * 1620 mmShipping Dimensions:3800 * 1150 * 1650 mm
    Machine Weight:1300 kg
