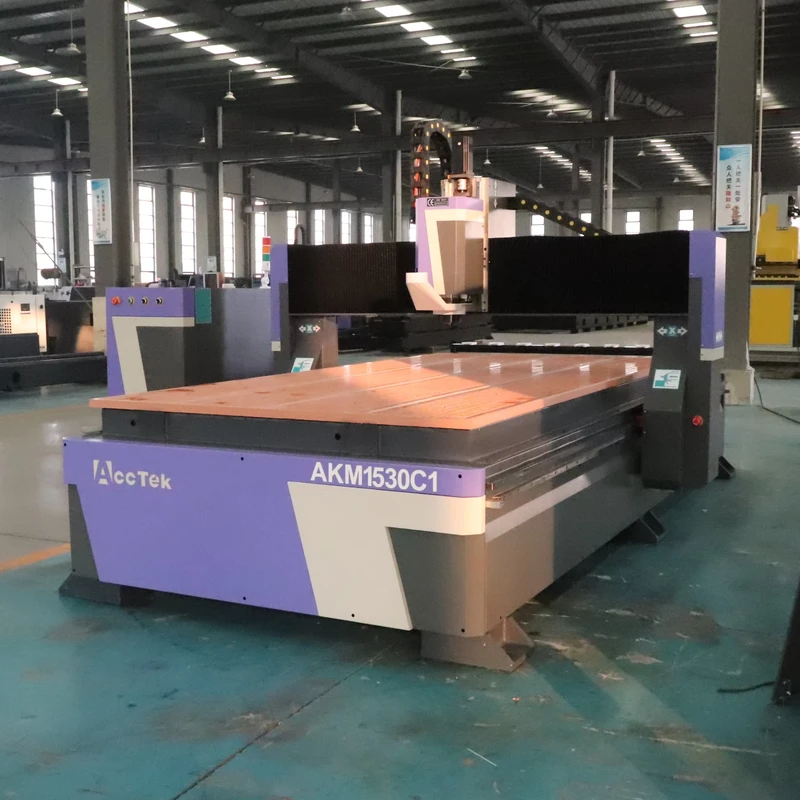

Multifunctional CNC Engraving Carving Machine 3 Axis CNC Controller ATC 3D Carving CNC Router Machine Wood

Multifunctional CNC Engraving Carving Machine 3 Axis CNC Controller ATC 3D Carving CNC Router Machine Wood
  • Multifunctional CNC Engraving Carving Machine 3 Axis CNC Controller ATC 3D Carving CNC Router Machine Wood

    • Multifunctional CNC Engraving Carving Machine 3 Axis CNC Controller ATC 3D Carving CNC Router Machine Wood

    Request a Quote
    number of axes3voltage220V single phase, 220V 3 phases, 380V 3phases
    machine typeATC CNC RouterNo. of SpindlesSingle
    key selling pointsAffordableAccessory TypeStandard
    core componentsSpindlecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1200range of spindle speed(r.p.m)0 - 18000
    positioning accuracy (mm)0.1travel (x axis)(mm)1500
    travel (y axis)(mm)3000repeatability (x/y/z) (mm)0.05
    Spindle Motor Power (kw)9.0dimension(l*w*h)1500*3000*250
    Product nameAtc 3d Carving Cnc Router Machine WoodSpindleHQD 9.0kw air-cooled type atc spindle
    Control systemMach3Motor and driverLeadshine easy servo motor and driver
    InverterFuling/DeltaX, Y structureRack and pinion, gear drive, Taiwan 25mm square guide rails
    Z structureTaiwan TBI ball screw, Taiwan 25mm square guide railsWorktable typeVacuum with t-slot
    CommandG code (HPGL, U00, mmg, plt)Lubrication systemAuto oil lubrication
