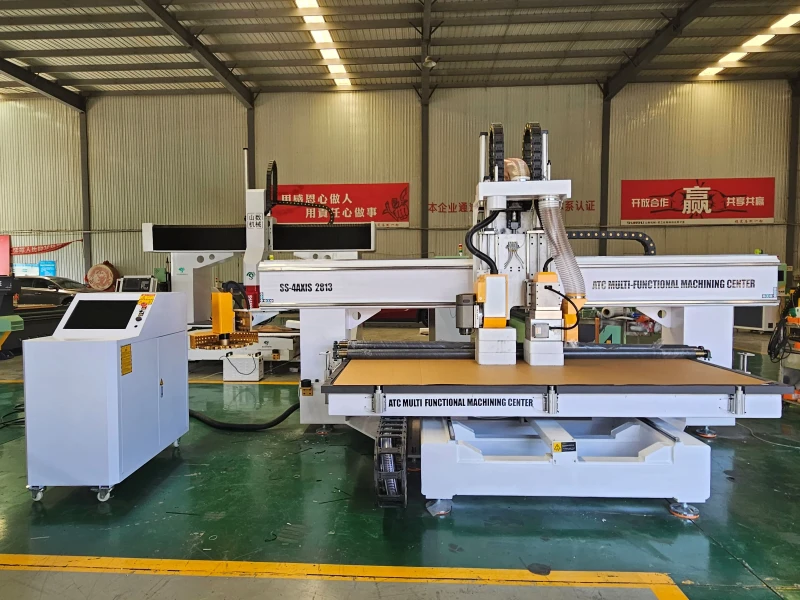

Multifunctional 4 Axis CNC Router Woodworking Machine with Servo Motor ATC ToolChanger High Precision Smart Control
Multifunctional 4 Axis CNC Router Woodworking Machine with Servo Motor ATC ToolChanger High Precision Smart Control
| number of axes | 4 | voltage | 380 V, 110 V, 200 V |
| machine type | CNC Router | No. of Spindles | ATC |
| key selling points | Multifunctional | Accessory Type | Dust collection |
| core components | Motor, Pump, PLC | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 3200 | range of spindle speed(r.p.m) | 1 - 24000 |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 2750 |
| travel (y axis)(mm) | 1300 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 11 | dimension(l*w*h) | 2600mm*3200mm*2300mm(102.36in*125.98in*90.55in) |
| Product name | 4 Axis Cnc Router | Application | Wood Working |
| Keywords | ATC Woodworking Cnc Router | Spindle | Air Cooling Spindle |
| After-sales Service Provided | 24 Hours Online Service+Engineers | Function | Wood Acylic Plywood MDF Engraving |
| Working area | 1300x2500mm/1300x2800mm/Customized | Transmission | XY-axis:rack Z-axis:ball Screw |
| Name | Wood Carving Machine Cnc Router | Motor and driver | Servo Motor Driver |
