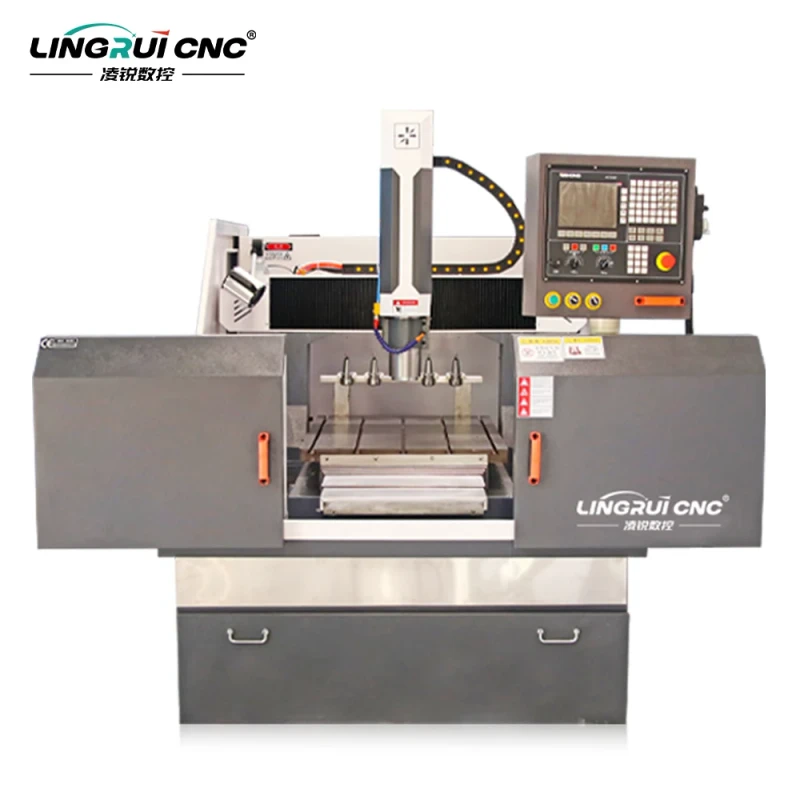

Mini Metal Milling Machine Aluminum Stainless Steel CNC Router for Metal Milling Engraving CNC Router Machine
Mini Metal Milling Machine Aluminum Stainless Steel CNC Router for Metal Milling Engraving CNC Router Machine
| type | VERTICAL | number of axes | 3 |
| voltage | 380 V, 220 V, 110 V | table travel (x) (mm) | 600, 500, 400, 900 |
| table travel (y) (mm) | 900, 600, 500, 1200 | table travel (z) (mm) | 250, 300, 350, 400 |
| positioning accuracy | ±0.001 | repeatability (x/y/z) (mm) | ±0.001 |
| spindle taper | BT30, BT40 | cnc control system | Weihong NK280 |
| machining capacity | Heavy Duty | no. of spindles | ATC |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Automatic | max. table load(kg) | 400 |
| range of spindle speed | 0 - 24000 | dimension(l*w*h) | 1500x1800x1750 |
| weight | 1080 | Product name | Mini Cnc Milling Machine |
| Keyword | cnc metal router | Spindle Power | 3.2KW automatic tool change spindle |
| Knife Handle Specifications | BT30-ER25 | Tool Magazine | Linear tool magazine |
| Tool Holder Capacity | 4/5/6 | Air Pressure | ≥0.8MPa |
| Control System | Weihong NK280 | Guideway | Taiwan Hiwin Guide Rail/Linear Bearing |
| Machine Type | Cnc Vertical Milling Machine |
