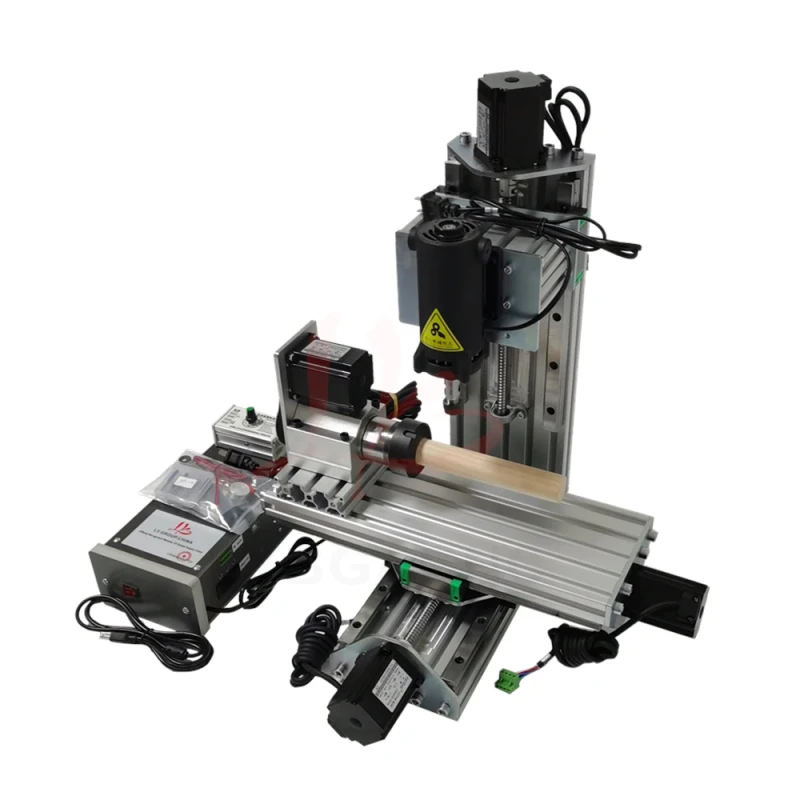

LY2515 Vertical Laser Engraving Machine 3/4/5axis Column Type CNC Router Engraving Drilling Milling Cutter Machine Wood Routers

LY2515 Vertical Laser Engraving Machine 3/4/5axis Column Type CNC Router Engraving Drilling Milling Cutter Machine Wood Routers
  • LY2515 Vertical Laser Engraving Machine 3/4/5axis Column Type CNC Router Engraving Drilling Milling Cutter Machine Wood Routers

    • LY2515 Vertical Laser Engraving Machine 3/4/5axis Column Type CNC Router Engraving Drilling Milling Cutter Machine Wood Routers

    Request a Quote
    Working Table Size(mm)500*400number of axes4
    voltage110 V, 200 Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)1weight (kg)32
    range of spindle speed(r.p.m)0 - 16000positioning accuracy (mm)0.02
    travel (x axis)(mm)230travel (y axis)(mm)130
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)1
    dimension(l*w*h)50*40*60Rack material30mm Aluminum profiles
    Table materialAluminum alloy T tableRail typeSquare line rail track, three-axis is 20 mm square wire track
    Spindle motor1000W Air cooling spindle , 0-16000r/min, Stepless speed regulationCollet typeER11,1/8"(3.175mm) Collet
    Stepper motor and drive57BYGH78 1.8° 3.0A 2.0N.mCommunication interfaceUSB Port
    Software Co patabilityMach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)System requirementsWin-XP / Win 7 Win 8 Win10
    Acceptable material thickness≤160mm
