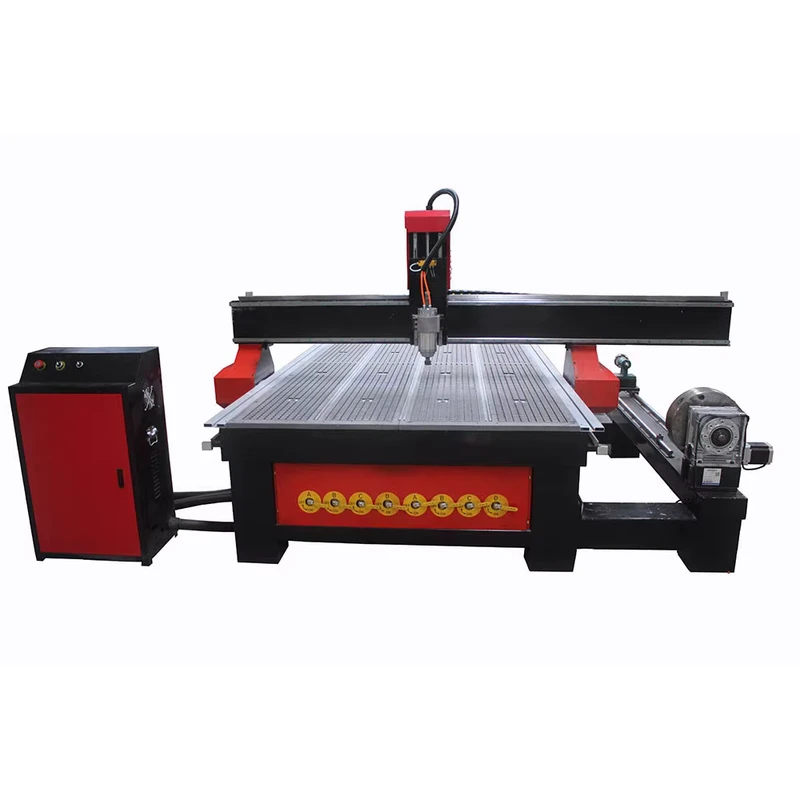

Jinan 3d Carve Wood Rotary Spindle machine 4 Axis Cnc Wood Router with Rotary Machine for Sale Price
Jinan 3d Carve Wood Rotary Spindle machine 4 Axis Cnc Wood Router with Rotary Machine for Sale Price
| Working Table Size(mm) | 1300×2500 | number of axes | 4 |
| voltage | AC220V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Competitive Price |
| core components | Motor | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 15 | weight (kg) | 1300 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.02 | Spindle Motor Power (kw) | 3.2 |
| dimension(l*w*h) | 1300*2500*200mm(51.18*98.43*7.87in) | Lathe surface | Steel tube welded frame |
| Drive system X-Y axis | Rack actuation | Drive system Z axis | Ball screw |
| Table Surface | Aluminium T slot table | Max working speed | 25m/min |
| Spindle power | 3.2KW water cooling spindle | Work mode | Step (optional servo) |
| Control system | DSP Control System | Application | FOAM MDF WOOD ACRYLIC ALUMINUM |
| Warranty of core components | 2 years |
