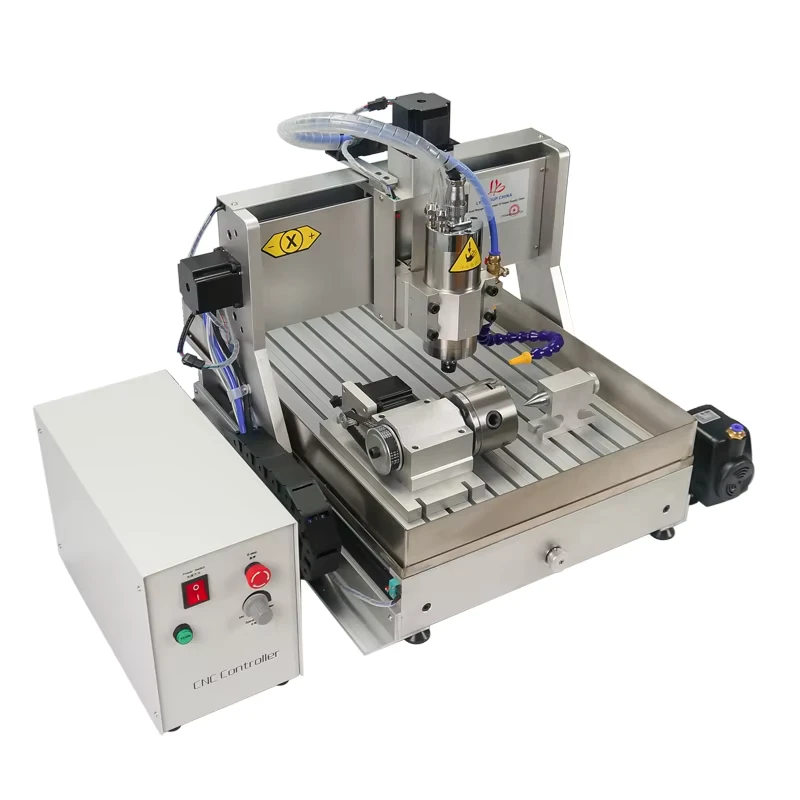

Hobby 3D CNC Router 3020 3040 6040 6090 2.2KW Spindle 4 Axis CNC Milling Engraving Drilling Carving Machine
Hobby 3D CNC Router 3020 3040 6040 6090 2.2KW Spindle 4 Axis CNC Milling Engraving Drilling Carving Machine
| Marking Area | 300mm*300mm(11.81in*11.81in) | machine type | cnc machine |
| engraving speed | 300-3000mm/min(11.81-118.11in/min) | Voltage | 220 V, 110 V |
| rated power | 2.2KW(2.95hp) | Operating Mode | Semi-Automatic |
| machinery test report | Not Available | video outgoing-inspection | Not Available |
| core components | Engine, Bearing, Motor | key selling points | Easy To Operate |
| weight (kg) | 72 | main axle rotational speed | 0-24000r/min |
| feeding height | 80MM(3.15in) | milling cutter diameter | ER20,1/8"(3.175mm) Collet |
| Dimension(L*W*H) | 80x70x60cm(31.50x27.56x23.62in) | After-sales Service Provided | Engineers available to service machinery overseas |
| Effective working travel | 300X200mm/ 300X400mm / 600X400mm / 900X600mm | Type of screw | Ball screw |
| Spindle motor | 2.2KW | Collet type | ER20 |
| Operating speed | 4000mm/min | Repeat positioning Accuracy | 0.03mm |
| Software Compatability | Mach3 | Feature-1 | 4th axis |
| Feature-2 | Assembled & tested well |
