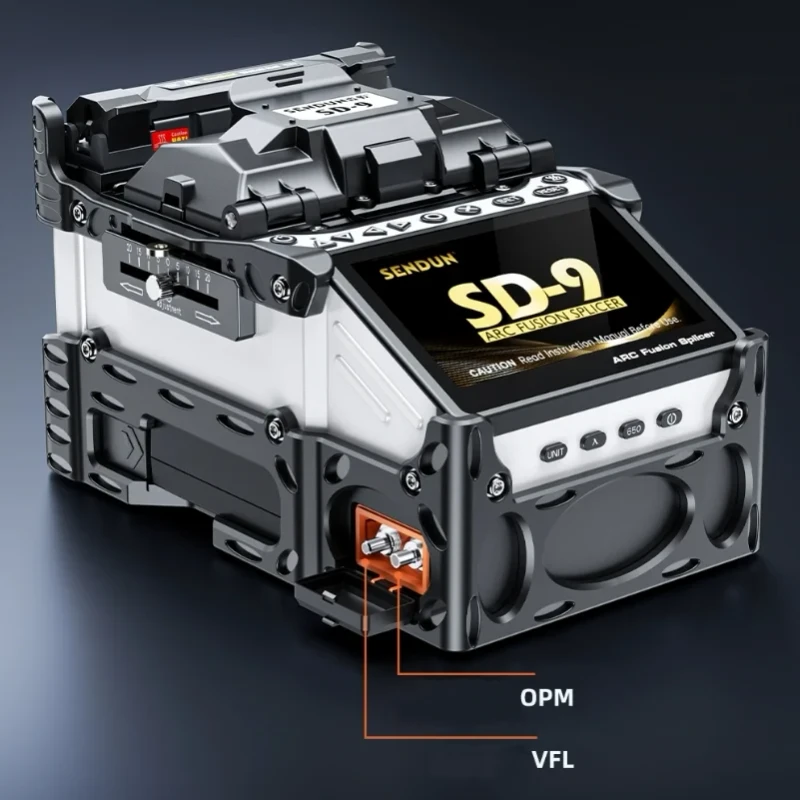

High Success Rate 5s Splicer Machine Fast Heat Precise Core Alignment Fusion Splicer for Medium Distance Trunk Line GSM GPRS

High Success Rate 5s Splicer Machine Fast Heat Precise Core Alignment Fusion Splicer for Medium Distance Trunk Line GSM GPRS
  • High Success Rate 5s Splicer Machine Fast Heat Precise Core Alignment Fusion Splicer for Medium Distance Trunk Line GSM GPRS

    • High Success Rate 5s Splicer Machine Fast Heat Precise Core Alignment Fusion Splicer for Medium Distance Trunk Line GSM GPRS

    Request a Quote
    Typefusion splicer, fiber fusion splicerConnector TypePC
    Power SourceAC 100-240V, Dc 12VUseTrunk Line / FTTX
    NetworkBluetooth, POE, Gprs, Wi-Fi, 4 G, Gsm, 3 GWarranty Time2 years
    Port-Power - Minimum Receivable-
    Frequency Range-Core6 Motors Core to Core Alignment
    Appicable FibersSM(ITU-T G.652&G.657), MM(ITU-T G.651), DS(ITU-T G.653), NZDS (G-655)Cladding Diameter80-150 um
    Typical Splice LossSM: 0.02dB/ MM: 0.01dB/ DS: 0.04dB/ NZDS: 0.05dB/ G657: 0.03dBSplicing Time5s
    Heating Time11sReturn Loss≥ 60 dB
    Screen4.3" high resolution display with touch screenBattery7200mAh battery capacity
    Special FunctionAuto Rotation Cleaver, OPM & VFL Integrated
