Professional manufacturer of woodworking machinery

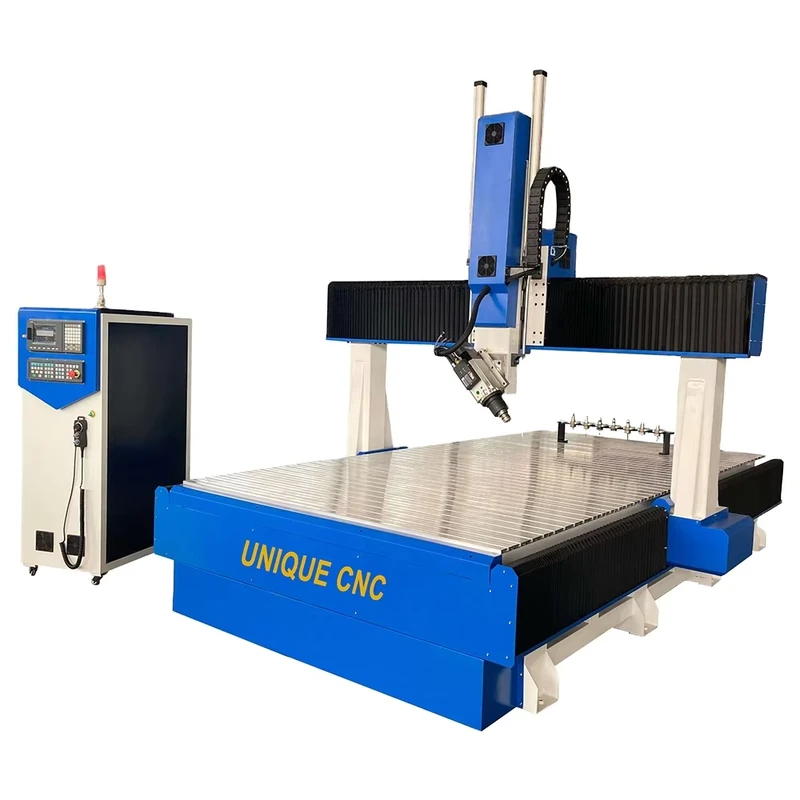

High Rigidity Thick Steel Tube Welded 4D Wood Working CNC Router Machine with Automatic Tool Changeer
High Rigidity Thick Steel Tube Welded 4D Wood Working CNC Router Machine with Automatic Tool Changeer
| Working Table Size(mm) | 1500*3000 | number of axes | 4 |
| voltage | 380V/220V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High Rigidity |
| core components | Motor | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2200 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.01 mm(0in) | travel (x axis)(mm) | 1500 mm(59.06in) |
| travel (y axis)(mm) | 3000 mm(118.11in) | repeatability (x/y/z) (mm) | 0.01 mm(0in) |
| Spindle Motor Power (kw) | 9.0KW(12.07hp) | dimension(l*w*h) | 1500x3000x700mm(59.06x118.11x27.56in) |
| After-sales Service Provided | Field installation, commissioning and training | Machine structure | thick steel tube welded |
| Transmit way | X and Y transmit by helical gear rack, Z transmit by ballscrews | Control system | Syntec |
| Spindle | 9kw Air Cooling ATC Spindle | Motor | Servo |
| Color | Customized | Table | T slot table (Option: vacuum,steel table,cast iron table) |
| Certification | CE | Spindle rotate degree | ±90 degree |
