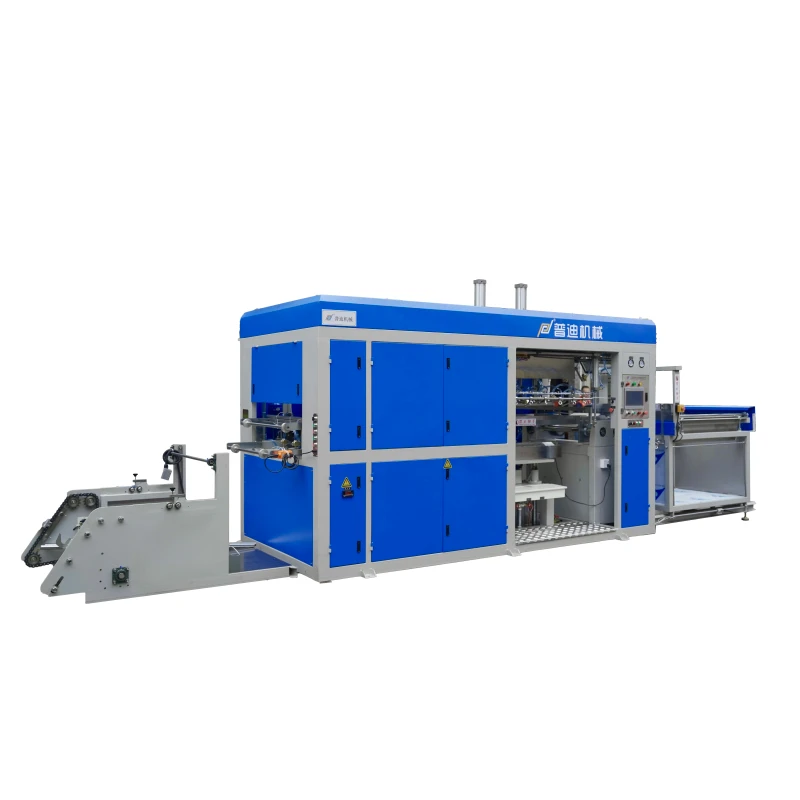

High Quality Fully Automatic Plastic Blister Sheet Vacuum Forming Machine Plastic Box Making Machine
High Quality Fully Automatic Plastic Blister Sheet Vacuum Forming Machine Plastic Box Making Machine
| plastic type | PE, PP, PVC, PET, ABS, PS, EPS, Hips, PMMA | product type | Sheet |
| voltage | 380V | automatic | Yes |
| core components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | machinery test report | Provided |
| key selling points | Touch screen operation+high efficiency+energy-saving | video outgoing-inspection | Provided |
| weight (t) | 10 T(11.02short tons ) | max.forming height(mm) | 150 mm(5.91in) |
| forming width (mm) | 710 mm(27.95in) | forming length (mm) | 1220 mm(48.03in) |
| heating power (kw) | 36 kW | dimension(l*w*h) | 7700*1600*2500 mm(303.15*62.99*98.43in) |
| Product name | sheet vacuum forming machine | Power supply voltage | 380V/50HZ |
| Molding height | 150mm | Forming length | 500mm-1220mm |
| Forming width | 450mm-710mm | Material and thickness | PVC,PET,PS,PP etc. 0.15mm-2.0mm |
| pulling systems | 3KW Delta servo motor pull tab | air supply | 10HP air compressor, air pressure 6-8bar (self-contained) |
| Machine size | 7700*1600*2500 mm | Material | Steel |
