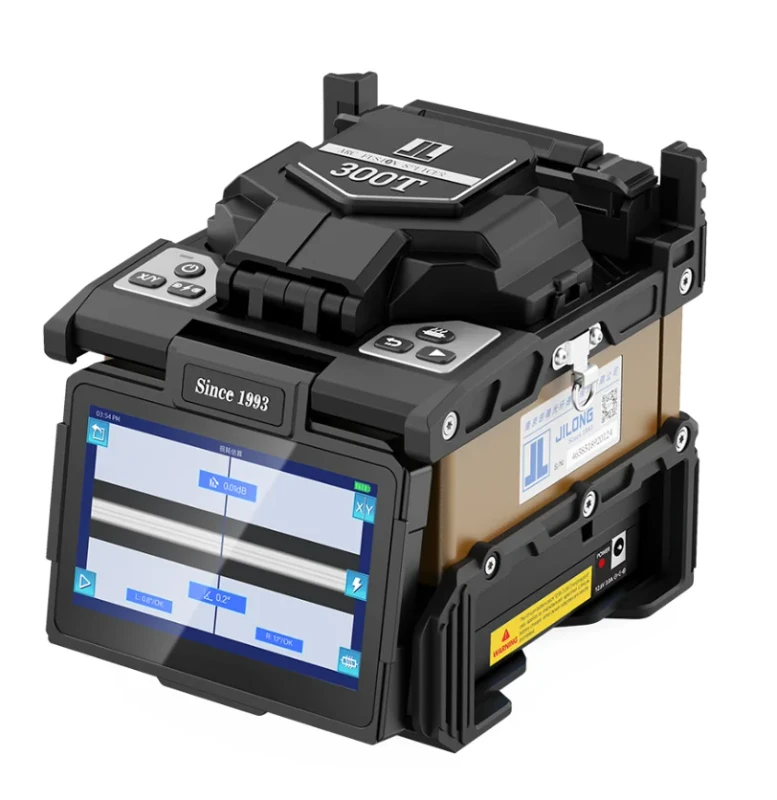

High Precision Fiber Fusion Splicer Machine 8s Splicing 18s Heating 3.5" HD LCD 320X Magnification
High Precision Fiber Fusion Splicer Machine 8s Splicing 18s Heating 3.5" HD LCD 320X Magnification
| Type | Fiber fusion splicer | Power Source | AC100-240V & DC9-14V |
| Use | FTTH,Fiber Construction,Data Center,FTTX Project | Network | FTTH/FTTX/Telecom Engineering |
| Warranty Time | 3 years | Port | USB2.0 |
| Frequency Range | 50Hz-60Hz | Alignment Method | Cladding Alignment |
| Supported Fiber Type | SM/MM/DS/NZDS/G.657 compliant per ITU-T | Typical Splice Loss | SM:0.03dB,MM:0.01dB |
| Electrode Lifespan | Approx 5000 discharge times | Battery Capacity | 4000mAh,~120 splice+heat cycles per full charge |
| Auto Function | Auto Splice Start & Auto Heat Start | Data Storage | 10000 splice data / 2000 splice images |
| Operating Altitude | 0~5000m above sea level | Screen Spec | 3.5inch LCD,Max 320X Magnification |
| Net Weight | 1.35kg |
