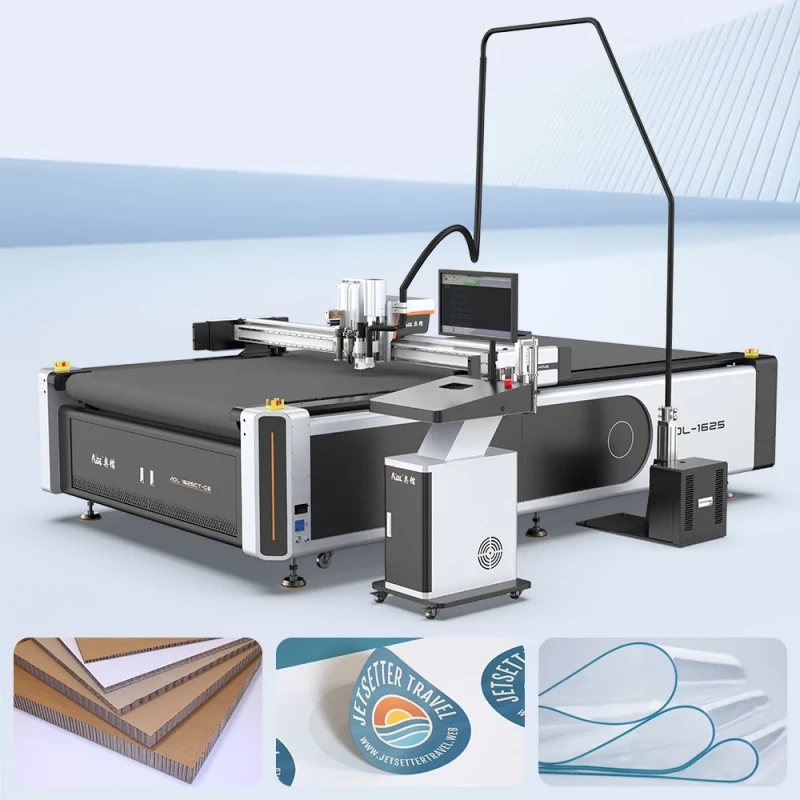

High Precision CNC Cutting Machine For Honeycomb Panel Grey Board With Oscillating Knife CCD Camera

High Precision CNC Cutting Machine For Honeycomb Panel Grey Board With Oscillating Knife CCD Camera
  • High Precision CNC Cutting Machine For Honeycomb Panel Grey Board With Oscillating Knife CCD Camera

    • High Precision CNC Cutting Machine For Honeycomb Panel Grey Board With Oscillating Knife CCD Camera

    Request a Quote
    typePaper Cutting MachineWorking Width1 600 mm
    production capacity200 pcs/minvoltage220 V, 380 V
    plc brandAOLcomputerizedYes
    machinery test reportProvidedvideo outgoing-inspectionProvided
    core componentsMotor, Bearing, Pump, Engine, PLCColorBlack, White
    Weight (KG)1250dimension(l*w*h)3560*2350*1221mm(140.16*92.52*48.07in)
    Product Dimension1600*2500mm(62.99*98.43in)Product nameAOL CNC Sticker Cutting Plotter
    Cutting thickness0.1-50mm, according to different materialRepeated accuracy≤0.1mm
    Cutting speed0-1800mm/s (depending on material density)SoftwareAOL CUT
    Drive systemServo motorSafety deviceUsing infrared sensors, responsive and reliable
    Material fixing methodVacuum partition adsorptionDrawing formatPLT/DXF/PDF
    After warranty service24H On-site service and engineer overseas service
