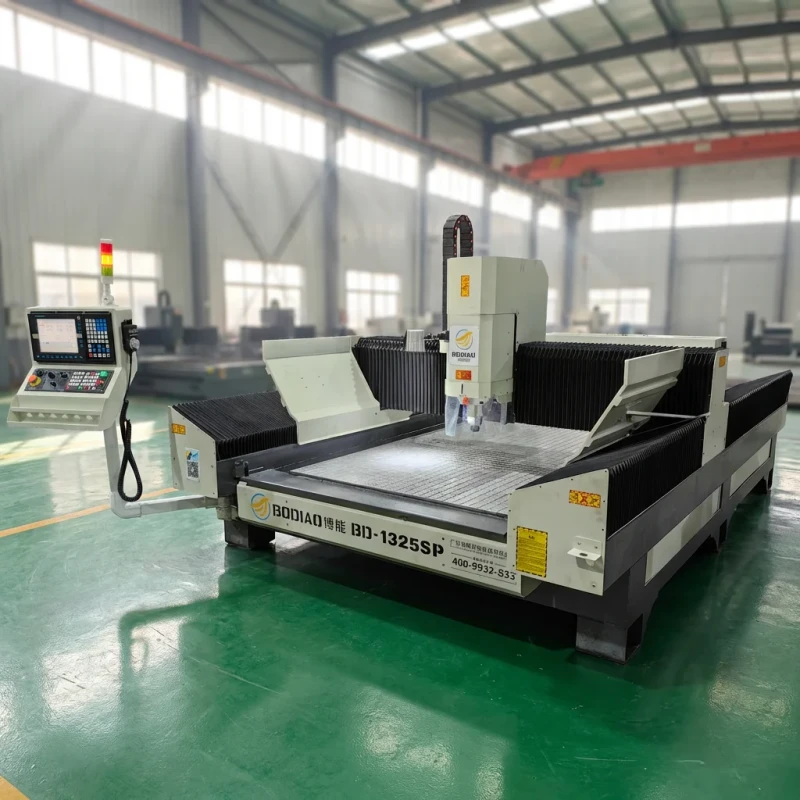

High Precision 1325 Gantry CNC Router Automatic Single Aluminum Copper Engraving 7.5KW Water Cooling Metal Sheet Cutting Machine
High Precision 1325 Gantry CNC Router Automatic Single Aluminum Copper Engraving 7.5KW Water Cooling Metal Sheet Cutting Machine
| type | Gantry | table travel (x) (mm) | 1300 |
| table travel (y) (mm) | 2500 | table travel (z) (mm) | 165 |
| repeatability (x/y/z) (mm) | ±0.01 | positioning accuracy | ±0.02 |
| no. of spindles | Single | tool magazine capacity | None |
| cnc control system | WEIHONG NK300CX | machining capacity | Heavy Duty |
| voltage | 380 V | table size | 1300x2500 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 2 | key selling points | High Productivity, Long Service Life, Automatic |
| weight (t) | 4.5 | max. table load(kg) | 4000 |
| dimension(l*w*h) | 3700x2500x2000mm(145.67x98.43x78.74in) | range of spindle speed | 6000 - 24000 |
| Product name | High Precision Aluminum CNC Router 1325 | Application | Luxury Villa Copper Door Deep Carving |
| Keywords | Aluminum CNC Router 1325 | Function | High Precision Deep Engraving & Carving |
| Control system | WEIHONG NK300CX SYNTEC | Spindle | 7.5kw Water Cooling Spindle |
| CNC or Not | CNC Systemn | Color | Customer Optional |
| Motor | WEIHONG Servo Motor | Guideways | ROUST HengErDa Wide Square Guide Rail |
