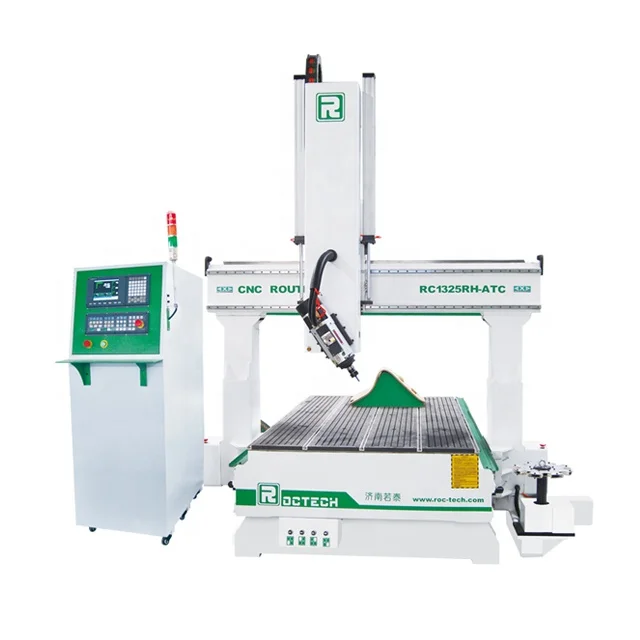

High-end 4 Axis Including Rotary System CNC Engraving Machine RC1325 RH-ATC

High-end 4 Axis Including Rotary System CNC Engraving Machine RC1325 RH-ATC
  • High-end 4 Axis Including Rotary System CNC Engraving Machine RC1325 RH-ATC

    • High-end 4 Axis Including Rotary System CNC Engraving Machine RC1325 RH-ATC

    Request a Quote
    Working Table Size(mm)1300×2500number of axes4
    voltage380V/220vmachine typeCnc Engraving Machine
    No. of SpindlesATCkey selling pointsHigh Rigidity
    core componentsMotor, Pump, PLC, spindle, control systemcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)18weight (kg)1800
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)9
    dimension(l*w*h)3800*2200*2300mm(149.61*86.61*90.55in)ColorWhite
    Application3d engraving machineControl systemSyntec
    Working area1300x2500mmInverterDelta Inverter
    Working tableVacuum and T-slot combined tableSpindle9kw ATC Spindle
    MotorJapan Yaskawa Servo MotorWorking VoltageAC220V/AC380/50HZ/60HZ
    FunctionCutting Engraving Carving
