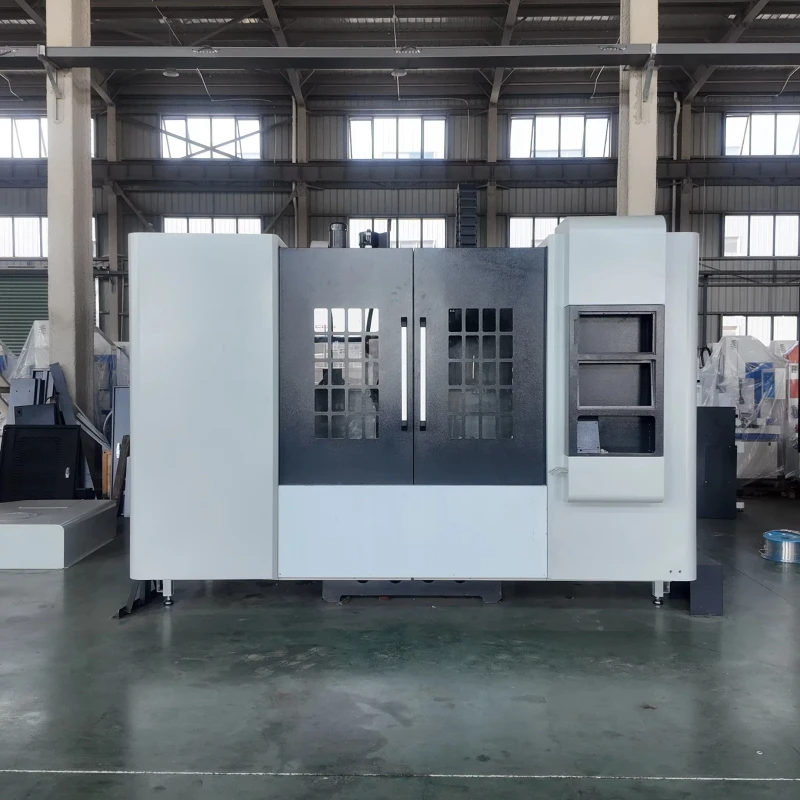

High Accuracy 3 Axis Vertical CNC Machining Center

High Accuracy 3 Axis Vertical CNC Machining Center
  • High Accuracy 3 Axis Vertical CNC Machining Center

    • High Accuracy 3 Axis Vertical CNC Machining Center

    Request a Quote
    typeVERTICALtable travel (x) (mm)800
    table travel (y) (mm)500table travel (z) (mm)500
    repeatability (x/y/z) (mm)±0.003positioning accuracy±0.003
    spindle taperBT40no. of spindlesSingle
    tool magazine capacity24cnc control systemSiemens
    machining capacityMedium Dutyvoltage380 V
    table size1000X500machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)3
    key selling pointsAutomatic, High-Accuracyweight (t)5.2
    max. table load(kg)500dimension(l*w*h)2700*2400*2500 mm(106.30*94.49*98.43in)
    range of spindle speed8000 - 15000rapid feed speed8000 - 15000
    Manufacturing or TradingSource manufacturerTest methodVideo conference test
    After Warranty ServiceVideo technical supportpplicationMetal Machining
    After-sales Service ProvidedOnline Support
