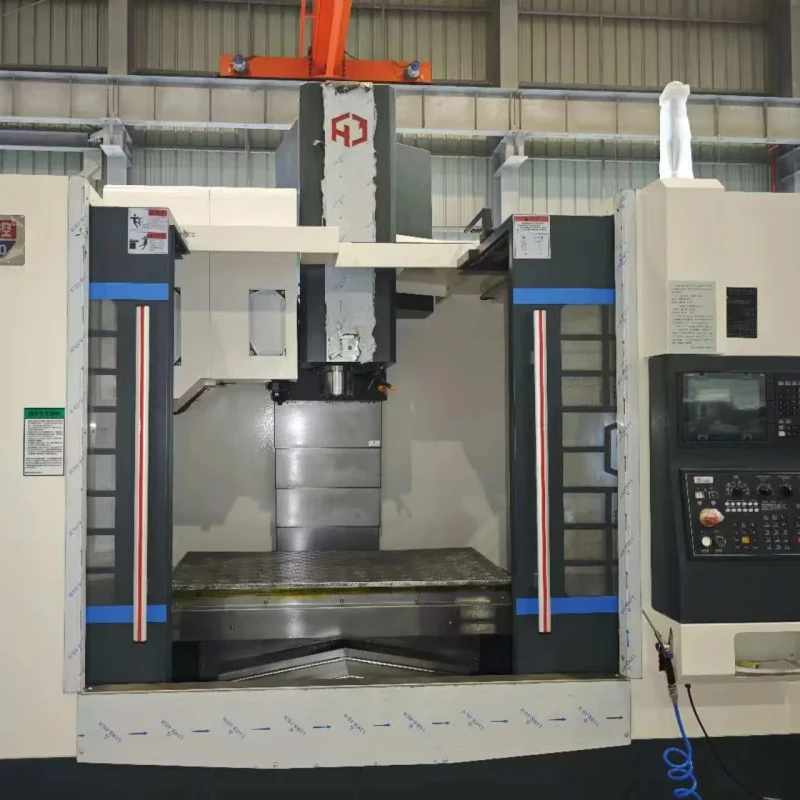

GV-1370 SYNTEC CNC Y Axis Automatic Vertical Machining Center with 4 Guide

GV-1370 SYNTEC CNC Y Axis Automatic Vertical Machining Center with 4 Guide
  • GV-1370 SYNTEC CNC Y Axis Automatic Vertical Machining Center with 4 Guide

    • GV-1370 SYNTEC CNC Y Axis Automatic Vertical Machining Center with 4 Guide

    Request a Quote
    table travel (x) (mm)1300table travel (y) (mm)700
    table travel (z) (mm)700repeatability (x/y/z) (mm)±0.003
    positioning accuracy±0.005spindle taperBT40
    no. of spindlesSingletool magazine capacity24
    table size1400*700min. time of tool change(s)2.8
    weight (t)10max. table load(kg)1200
    dimension(l*w*h)3.4*2.8*3
