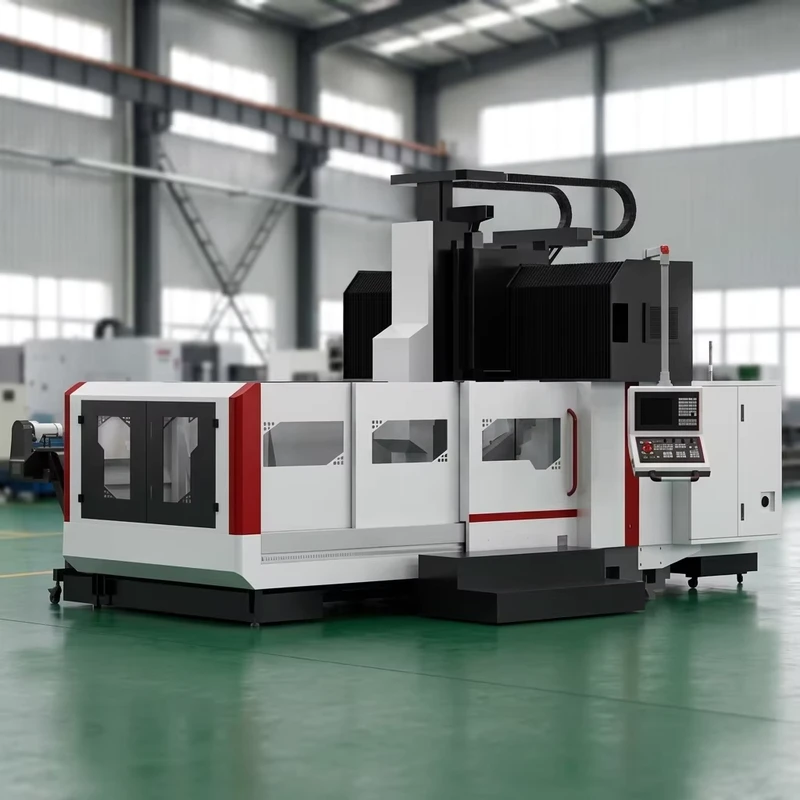

GMC3018 Heavy Duty CNC Gantry Machining Center High Quality CNC Gantry Machining Center with FANUC System
GMC3018 Heavy Duty CNC Gantry Machining Center High Quality CNC Gantry Machining Center with FANUC System
| type | Machining Center | table travel (x) (mm) | 3000 |
| table travel (y) (mm) | 1700 | table travel (z) (mm) | 900 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.005 |
| spindle taper | BT50 | no. of spindles | Single |
| tool magazine capacity | 24, 32 | machining capacity | Heavy Duty |
| voltage | 220V/380V | table size | 3200*1500 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 2 | weight (t) | 26 |
| max. table load(kg) | 1000 | dimension(l*w*h) | 8800*4000*4000 |
| range of spindle speed | 1 - 6000 r.p.m | rapid feed speed | 1 - 10000 mm/min(0.04-393.70in/min) |
| Worktable area | 3200*1500 | Worktable travel(X direction) | 3000 |
| Saddle travel(Y direction) | 1700 | Spindle box travel (Z direction) | 900 |
| Distance from spindle to worktable | 200-1100 | Spindle hole taper | BT50/ 190 |
| Z-axis ball screw specifications | R5010 | Spindle Bore(mm) | other |
| Feed Speed(mm/min) | 1 - 8000 mm/min | Cutting torque | 137 |
